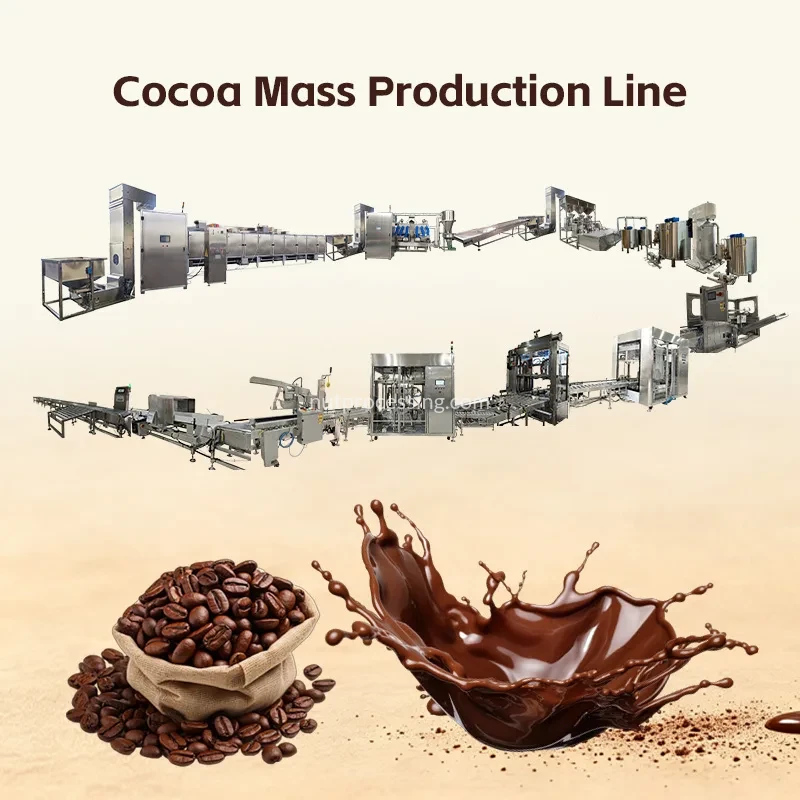

Cocoa Paste Making Machine is a comprehensive system designed to process cocoa beans into smooth, high-quality cocoa liquor. We can provide 500 kg/h, 1,000 kg/h, and 2,000 kg/h,and supports customization to meet specific requirements.
Through a series of pre-treatment and grinding stages—including cleaning,roasting,peeling,grinding,ball mill and packing—cocoa beans are transformed into cocoa liquor with a uniform texture. This liquor serves as a raw material for producing chocolate, cocoa powder, beverages, cocoa butter, and various other cocoa-based products, desserts, and snacks.
The cocoa liquor production line can be tailored to the client’s desired capacity, cocoa bean characteristics, target product fineness, and factory layout. Key process steps include cocoa bean cleaning line,roasting and peeling system,grinding and ball mill system,packing line.

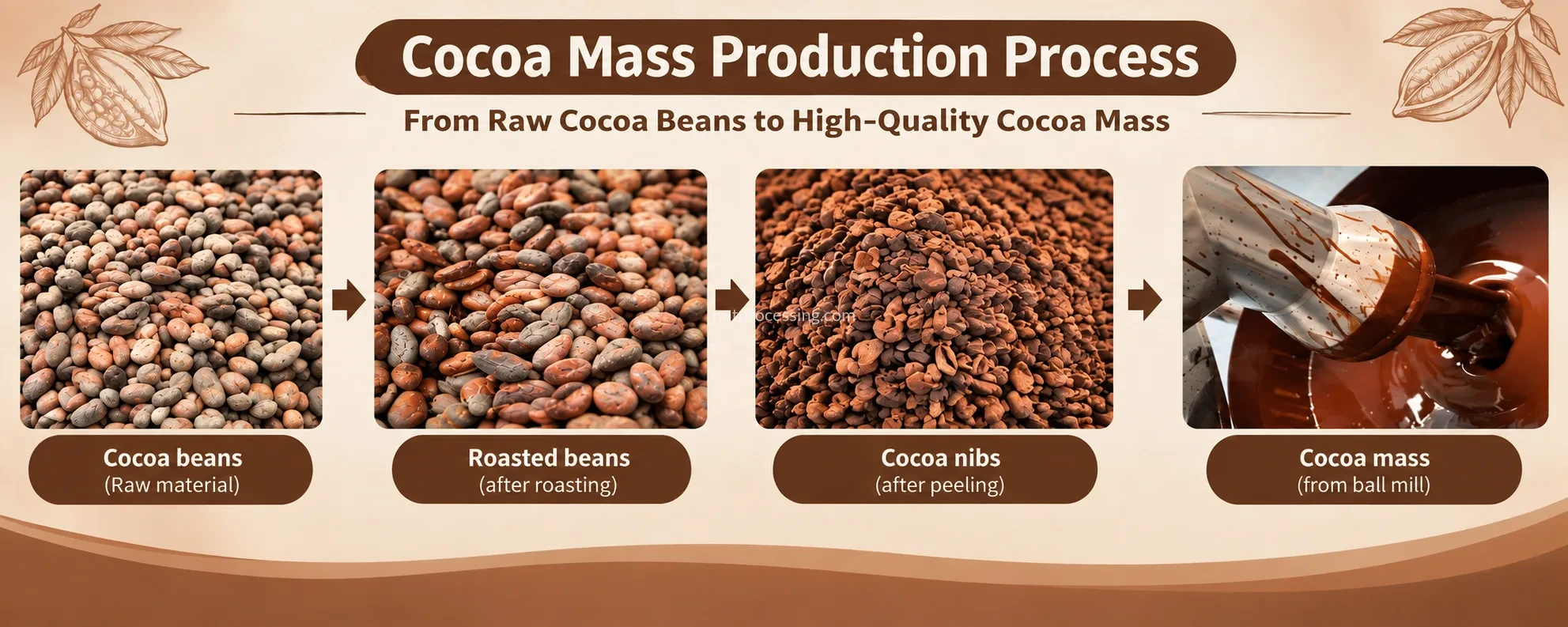

Cocoa Paste Making Process
Large quantities of raw cocoa beans undergo a sequential pre-treatment process involving the removal of impurities, stones, defective or moldy beans, and metal contaminants, followed by size grading. The beans are then conveyed via a lift to a roasting and cooling unit, where they are roasted at temperatures typically ranging from 160°C to 180°C for durations adjusted according to moisture content and desired roast level.
After cooling, the beans enter a winnowing machine, where rollers rub against them to loosen the shells; the mixture then falls onto a vibrating screen for size separation, while fans suction the detached shells—varying in size—out of the machine into a cyclone separator for storage.
The winnowed cocoa nibs are discharged onto a conveyor belt and transported to a combined mill, where they are ground into cocoa liquor within the gap between the stator and rotor. The resulting liquor is drawn by a vacuum pump into a temporary storage tank before being fed into ball mills; inside these mills, the impact and friction of steel balls against the material progressively reduce particle size to the required fineness, after which the product is ready for various types of filling operations as needed.
video of the cocoa paste making machine
Main Machines in Cocoa Paste Making Machine

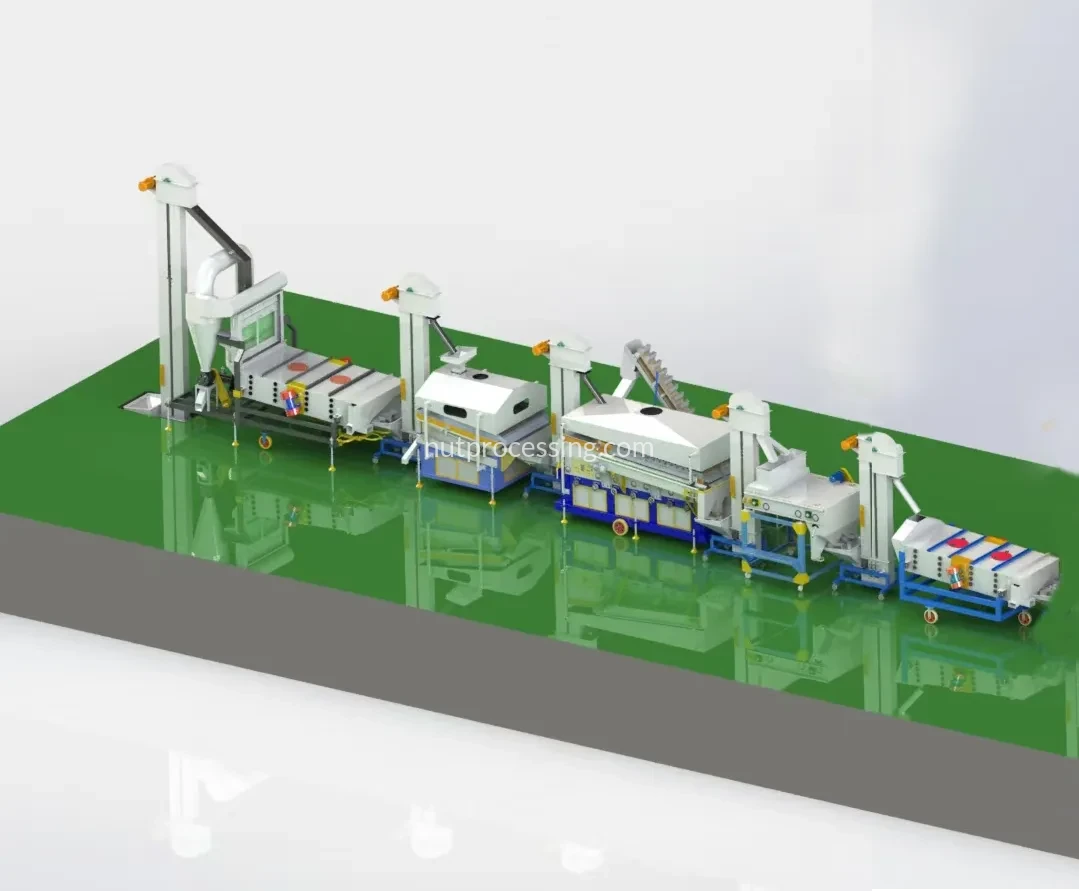

Cocoa Bean Pre-treatment
The first step is cocoa bean pre-treatment. Raw cocoa beans may contain dust, stones, metal particles, broken beans, and other impurities; therefore, proper pre-treatment is essential before subsequent processing. This system can also be used to process various grains such as soybeans, red beans, corn, and wheat.
Depending on the quality of the raw cocoa beans, the pre-treatment system may include processes such as cleaning, screening, and magnetic separation.Effective pre-treatment can:
Remove dust and foreign matter
Separate stones and other impurities
Remove metal particles
Improve cocoa bean cleanliness
Protect downstream processing equipment
Provide higher-quality raw materials for roasting and grinding

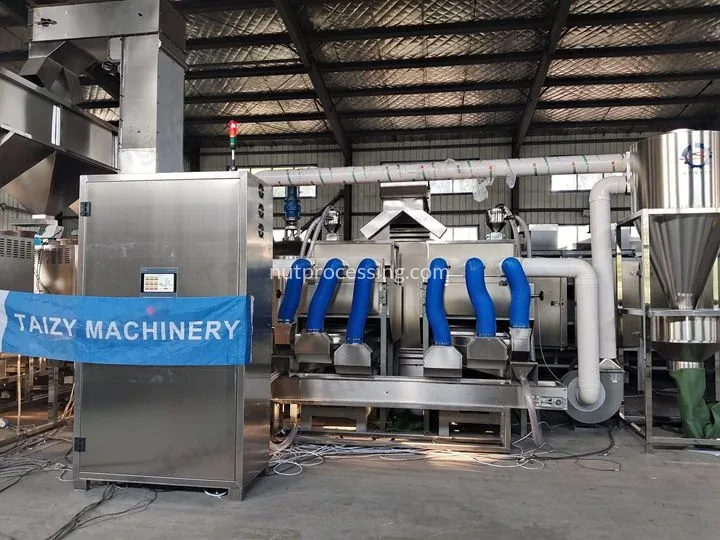

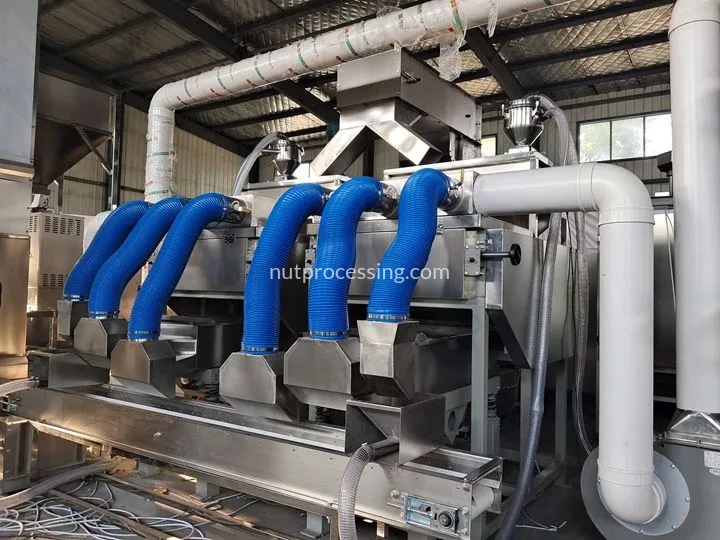

Cooling and Peeling
This peeling machine is designed specifically for processing cocoa beans. After roasting, the cocoa beans enter the hopper for uniform feeding. Shell removal is accomplished by rollers that rub the shells off. A fan extracts the detached shells and discharges them through the bottom of a cyclone separator, while the peeled cocoa nibs exit through the discharge outlet. Effective separation of shells and nibs can be achieved by adjusting the airflow and the gap between the rollers.

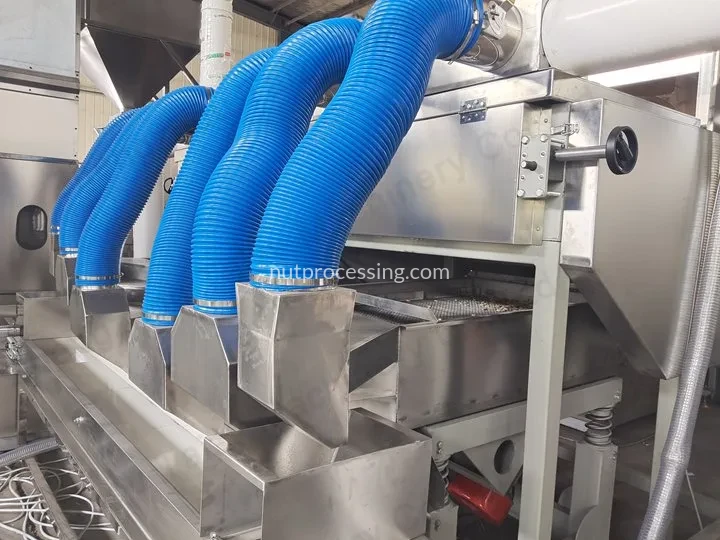

The machine features a vibrating sieve structure that grades the peeled nibs and residual shell fragments, further removing impurities and ensuring thorough separation. Any cocoa beans not fully peeled are detected and returned to the hopper via a series of blue pipes for a second peeling, ensuring a high peeling rate and minimizing raw material waste.
Cocoa Bean Roasting
After pretreatment, the cleaned cocoa beans are roasted at a controlled temperature.
The cacao bean roasting machine is a multipurpose roaster, suitable for roasting various nuts , such as peanuts, walnuts, almonds, cashew nuts, cocoa beans, coffee beans, and sunflower seeds. The roaster is first used in cocoa paste making machines.
The temperature typically ranges from 160°C to 180°C, with roasting times adjusted based on the cocoa beans’ moisture content and the desired degree of roast. Additionally, we offer other types of roasters, including machines that integrate continuous roasting and cooling.

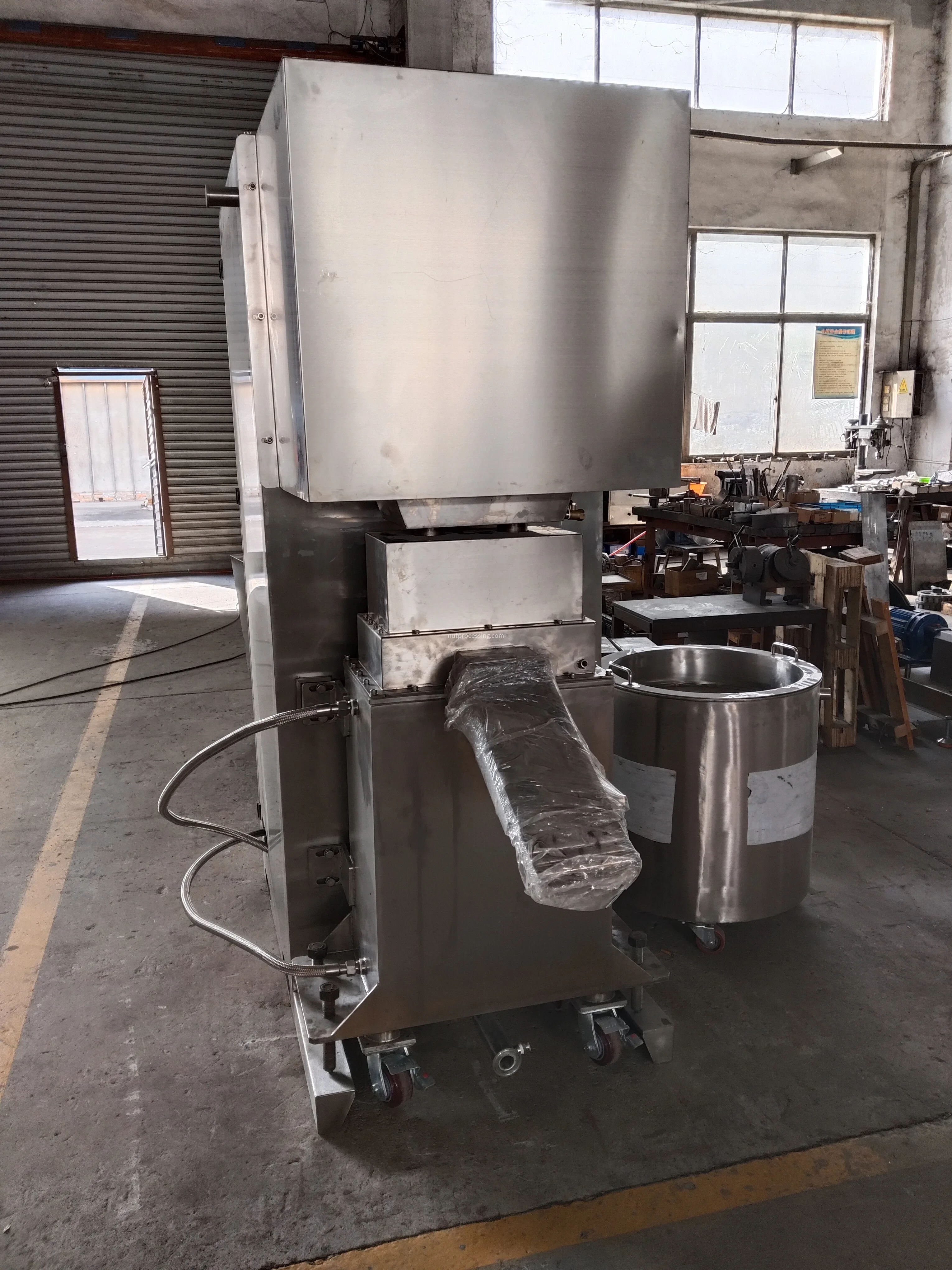

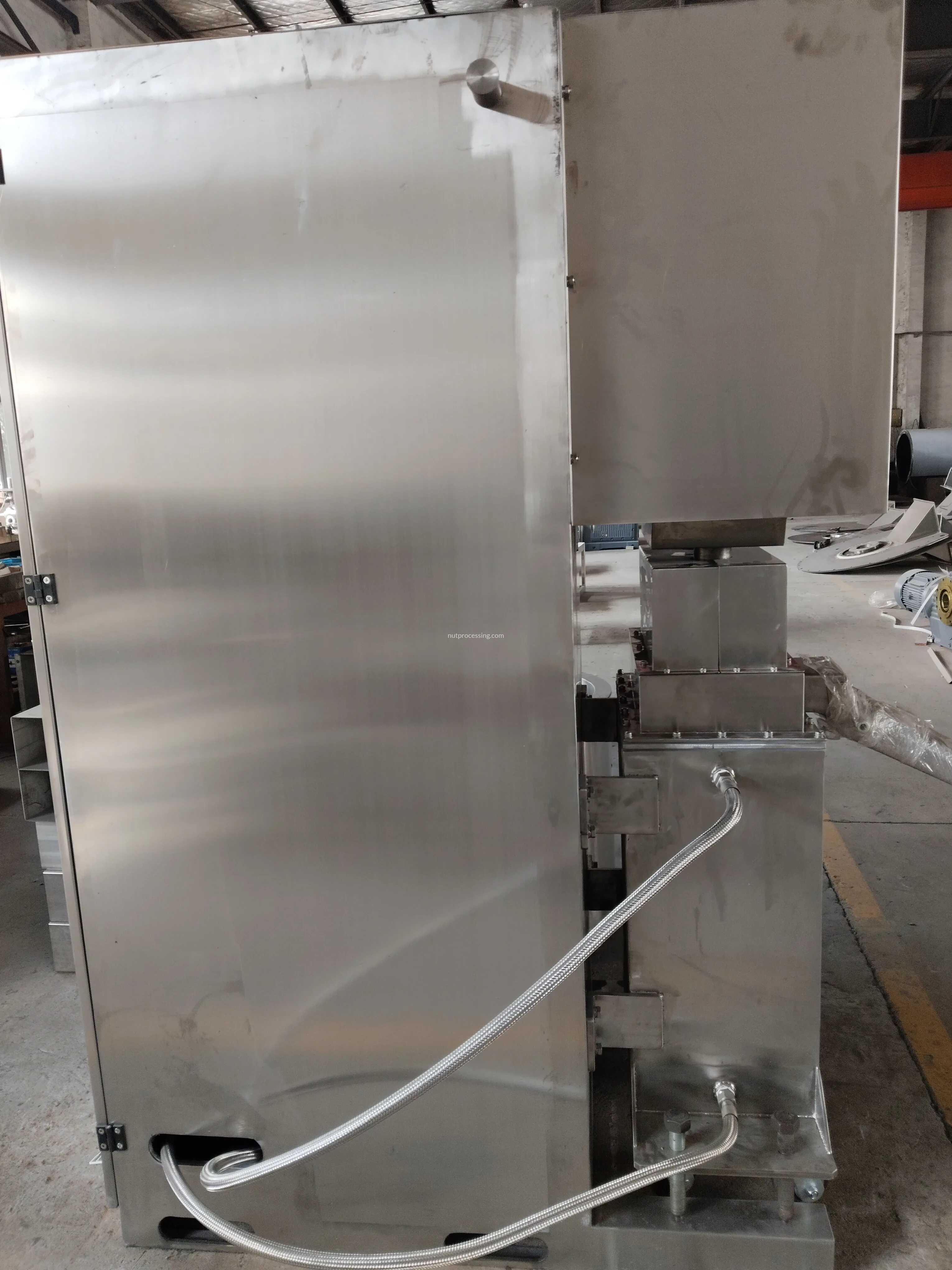

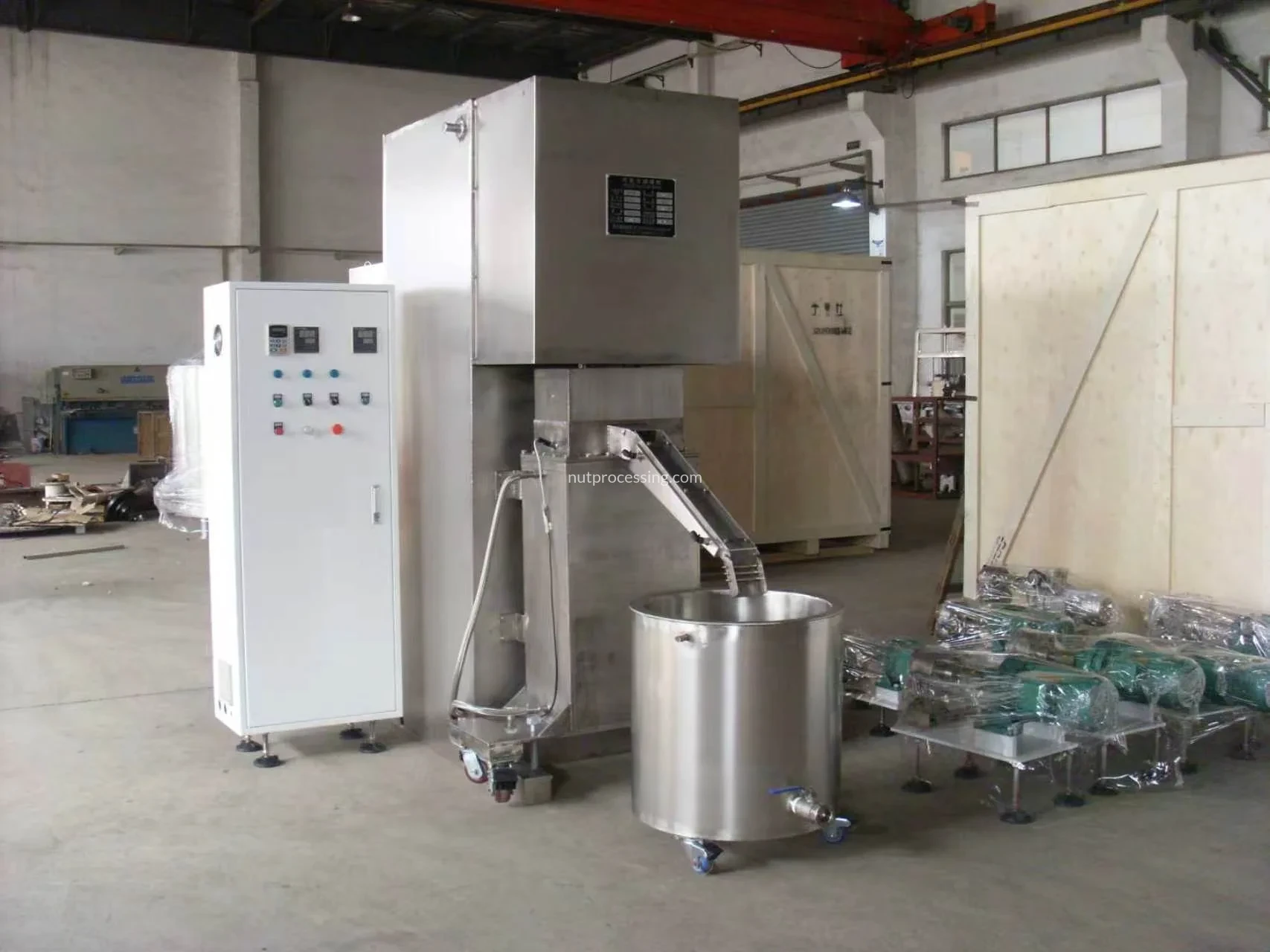

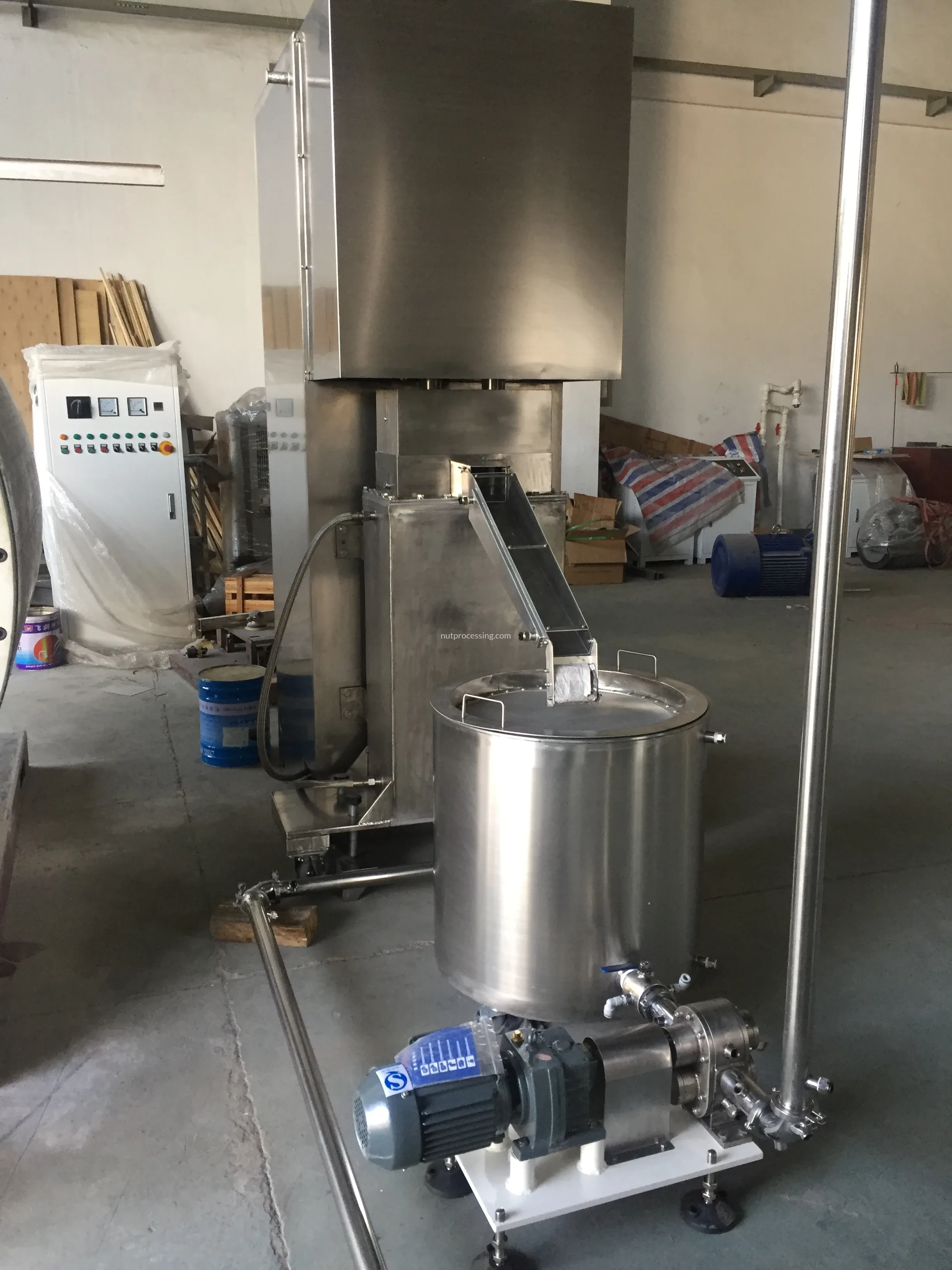

Cocoa Mass Ball Mill Machine
TZ250 Cocoa Mass Ball Milling Machine is used for ballgrinding and milling chocolate pastes. Through collision andfriction between the steel balls and the cocoa mass pastesinside the cylinder, the cocoa mass will be continuous-ly milled to reach the required fineness, featuring high pro-duction output, low energy cost, even fineness and etc.. This machine should be used along with cocoa mass refiner and conche, cocoa mass storage tank and cocoa mass deliverypump to achieve continuous production and improve pro-duction efficiency. Automatic temperature control is
equipped.
TZ1000 Cocoa Mass Ball Milling Machine isused for ball grinding and milling chocolate pastes.Through collision and friction between thesteel balls and the cocoa mass insidethe cylinder, the cocoa mass will becontinuously milled to reach the requiredfineness, featuring high production output,low energy cost, even fineness and etc..This machine should be used along with chocolate mixer, cocoa mass storage tank and cocoa mass delivery pump to achieve continuous production and improve production efficiency. Automatic temperature control and PLC control system are equipped.
| Model | Motor power | Capacity | Fineness | Ball Material | Balls weight | Machine weight | Size |
| TZ-250 | 15kw | 200-250kg/h | 25-20um | Ball bearing steel | 180kg | 2000kg | 1100*1250*2150mm |
| TZ-1000 | 55kw | 750-1000kg/h | 25-20um | Ball bearing steel | 1400kg | 5000kg | 2400*1500*2600mm |
Taizy Cocoa Mass Production Line Advantages
Complete Processing Solution
Taizy can provide a complete cocoa processing solution instead of supplying only a single machine. From raw cocoa bean pretreatment to final cocoa mass, the equipment can be matched according to the customer’s production requirements.
Professional Pretreatment Design
Different cocoa beans can contain different levels of dust, stones, foreign materials, and other impurities. Taizy can configure the pretreatment section according to the raw material condition to improve processing stability and protect downstream equipment.
Efficient Ball Mill Grinding
The ball mill is an important part of the system. Taizy focuses on efficient grinding, stable operation, and uniform cocoa mass quality to meet different processing requirements.
Flexible Production Capacity
The cocoa mass production line can be customized according to the required capacity. Equipment configuration, machine quantity, and processing layout can be adjusted for different production scales.
Customized Factory Layout
Taizy can design the processing flow and equipment arrangement according to the customer’s factory space, production capacity, raw materials, and final product requirements.
Complete Technical Support
Taizy provides technical support throughout the project, including equipment selection, production-line design, installation guidance, operation instructions, and after-sales technical support.
