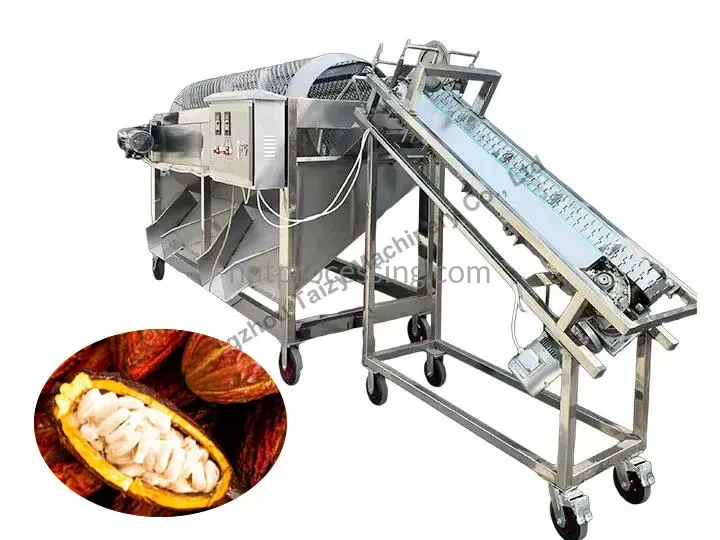

Cacao pods separator machine is specifically designed to efficiently split fresh cocoa pods and separate the cocoa beans from the husks, making the cocoa processing workflow faster, safer, and more productive. This processing equipment consists of a pod-splitting unit and a separation unit, forming a complete cocoa pod processing line. It automates the splitting of fresh cocoa pods and the subsequent separation of beans from husks, serving as the essential first step in cocoa bean pre-processing.

As a professional manufacturer of cocoa processing equipment, we offer comprehensive solutions for cocoa pod splitting and separation, with processing capacities ranging from 300 kg to 800 kg per hour. The machine features a robust frame and drum structure, with the main body constructed from food-grade 201 stainless steel. It is wear-resistant, corrosion-resistant, and easy to clean, making it an excellent choice for medium-to-large-scale processing facilities. The equipment minimizes damage to the cocoa beans while significantly reducing labor costs, making it an ideal solution for cocoa plantations, cooperatives, and processing plants. It helps cocoa farmers, processors, agricultural cooperatives, and suppliers enhance their processing efficiency while alleviating the manual labor required for splitting cocoa pods.

Finished Products You Will Get

Applications of Cacao Pods Separator Equipment

A Cacao Pods Separator Machine is suitable for different stages of fresh cacao handling and primary processing.

• Cacao farms: Mechanize the opening of harvested cacao pods.
• Agricultural cooperatives: Process pods collected from multiple farmers.
• Cocoa bean collection centers: Prepare fresh beans for fermentation.
• Cocoa processing plants: Improve the efficiency of initial bean extraction.
• Cacao-producing regions: Support post-harvest processing where manual pod opening requires considerable labor.

Cacao pods separator machine Working Video

Cacao pods separator machine Technical Parameters

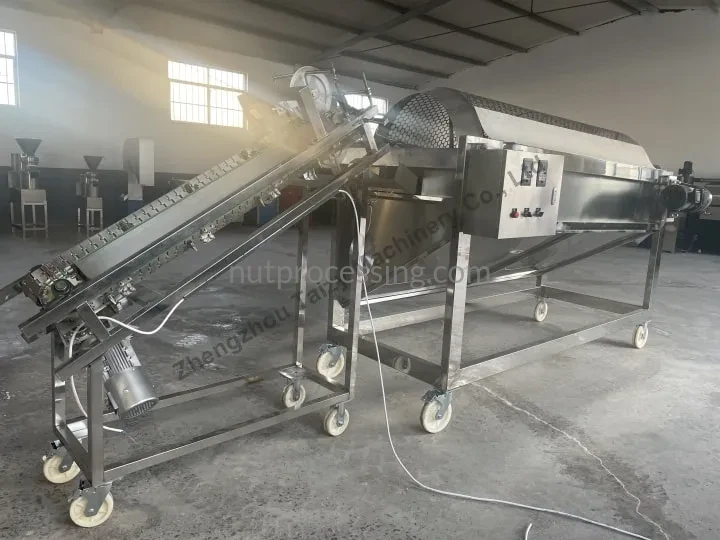

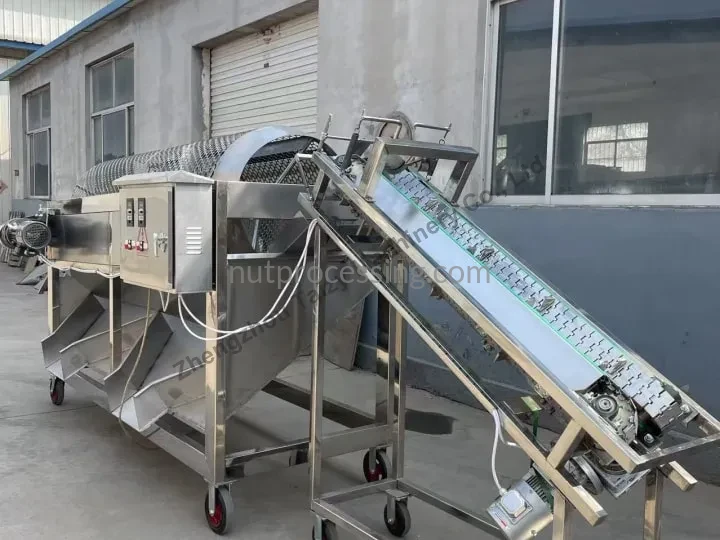

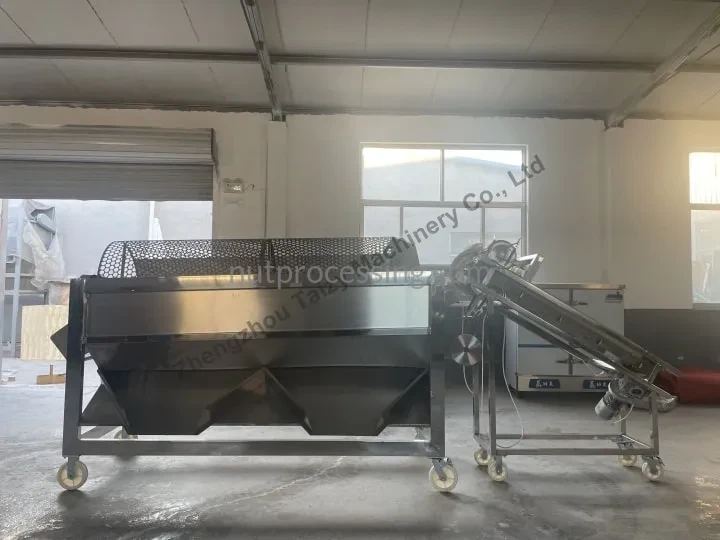

Our cocoa pod splitting machine mainly consists of two parts:
Cocoa pod cutting machine

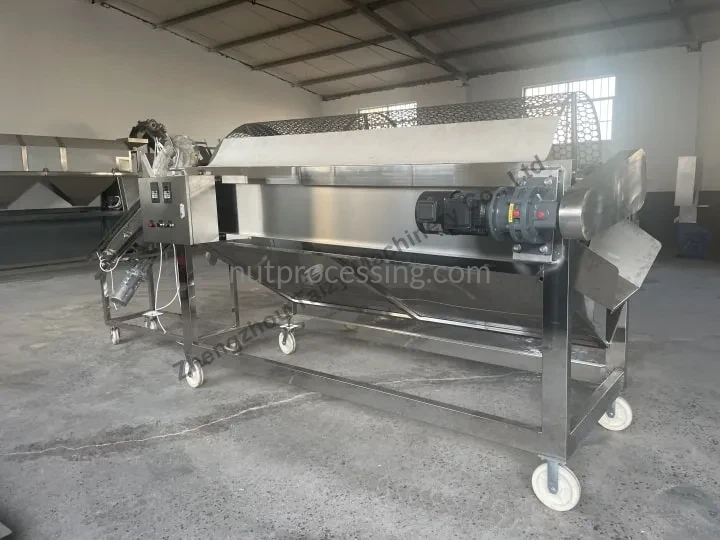

Cocoa bean and pod separation machine

Item	Specification	Specification
Cocoa pods cutting machine	Capacity:  300–400kg/h Power: 0.75kw Voltage: 380v 50hz Size: 1.6*0.6*1.6m Weight: 150kg Material: belt is 201 stainless steel; ; frame body and transmission parts carbon steel; This machine is mainly used to cut fresh cocoa pods into two halves	Capacity: 600-800kg/h Power: 0.75kw Voltage: 380v 50hz Size: 1.6*0.6*1.9m Weight: 150kg Material: belt is 201 stainless steel;  frame body and transmission parts is carbon steel; This machine is mainly used to cut fresh cocoa pods into two halves
Separator machine	Capacity: 300– 400kg/h Power: 1.1kw Voltage: 380v 50hz Size: 2 *1.3*1.7m Weight: 180kg Material: Drum and hopper contact food 201 stainless steel; transmission parts, frame carbon steel; This machine is mainly used to sieve cocoa pods and cocoa beans	Capacity: 600-800kg/h Power: 1.1kw Voltage: 380v 50hz Size: 3 *1.3*2m Weight: 230kg Material: Drum, hopper contact food 201 stainless steel; Frame body, and transmission parts is carbon steel; This machine is mainly used to sieve cocoa pods and cocoa beans.

Main Features of the Cacao pods separator machine

This integrated system performs both the cracking of cocoa pods and the separation of the beans within a single, coordinated workflow, eliminating the need for purely manual labor for these tasks.

The cutting and separation mechanism is specifically engineered for the characteristics of fresh cocoa pods. With proper equipment calibration and controlled feeding, it effectively minimizes unnecessary damage to the cocoa beans, ensuring the quality of the final product.

Achieves a screening efficiency of over 90%. The comb-tooth screening structure effectively prevents clogging, ensuring a stable and reliable separation process.

Capable of handling materials with varying bean sizes and degrees of mixture, while maintaining consistent screening performance.

An optional fully enclosed dust cover is available to minimize dust leakage, ensuring compliance with food processing hygiene standards.

The large cylindrical drum design ensures full contact between the material and the screen, significantly increasing processing capacity per unit of time.

The low-speed drum design minimizes vibration and noise, making it ideal for long-term, continuous operation.

Equipped with a side-mounted observation window for real-time monitoring, as well as a top-access inspection port that allows for checks and cleaning without the need to shut down the machine.
