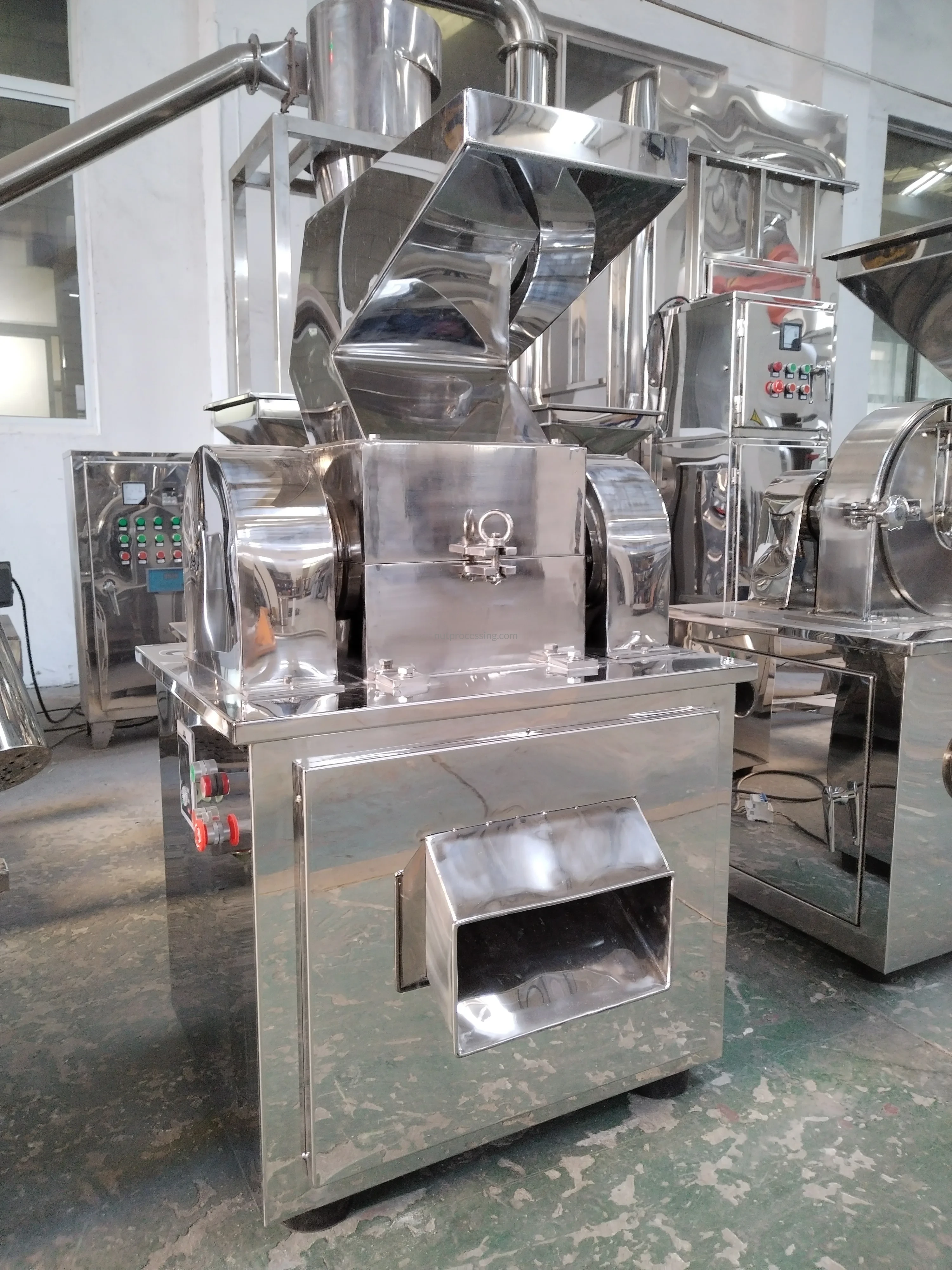

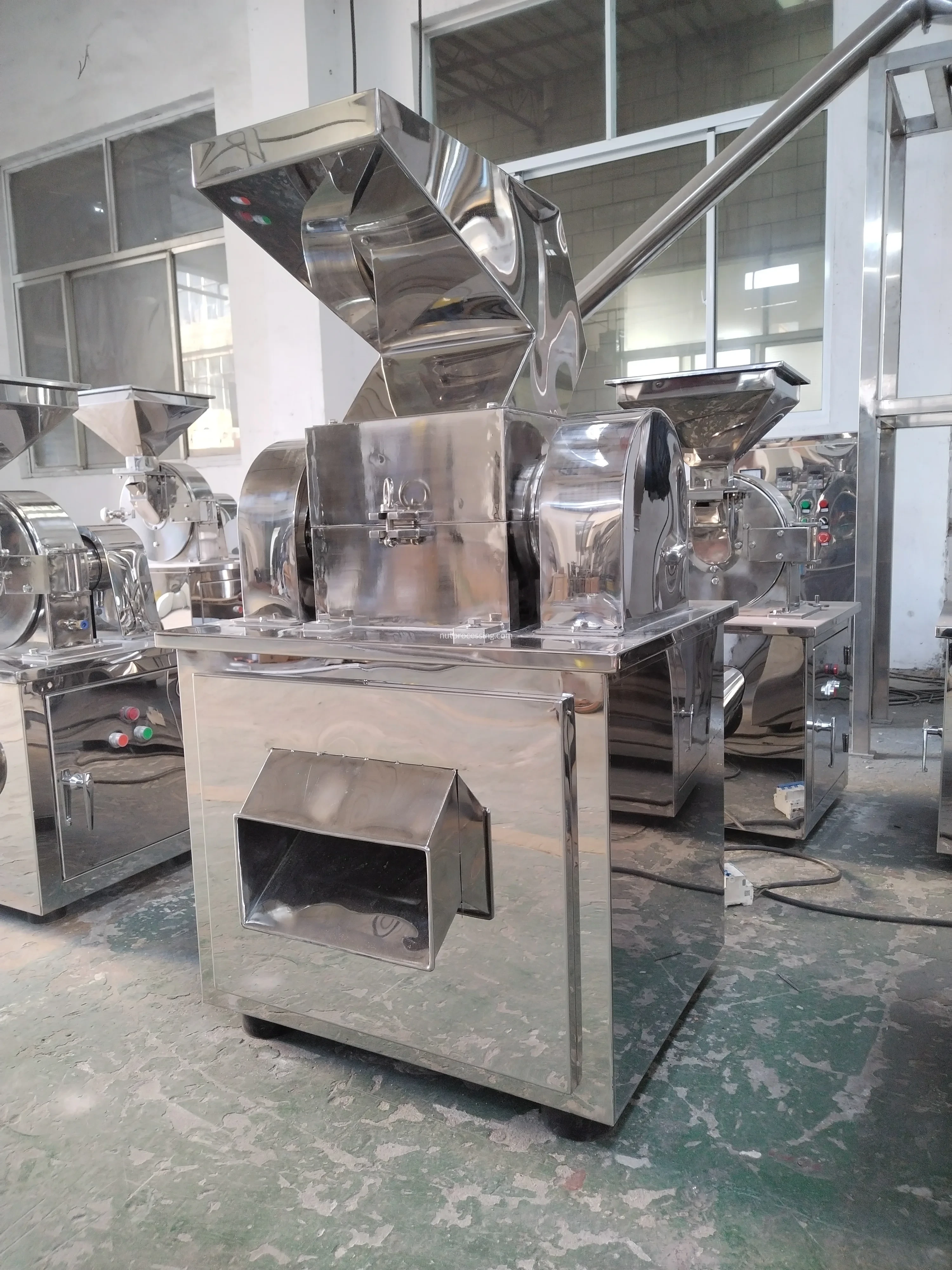

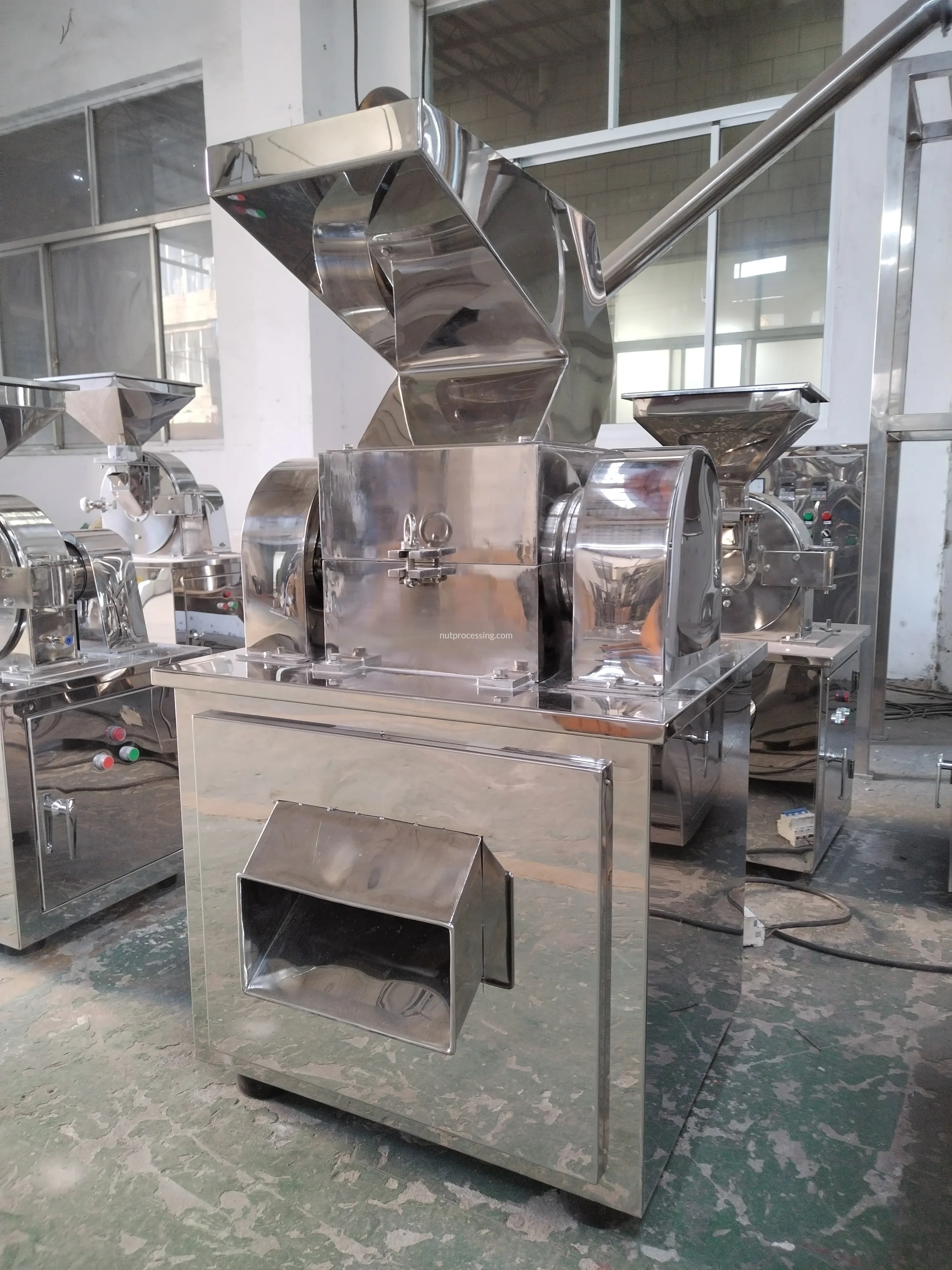

Cocoa Cake Coarse Crusher

One of the important applications of the Cocoa Cake Coarse Crusher is cocoa powder production.
After cocoa beans are cleaned, roasted, cracked and winnowed, the cocoa nibs are ground into cocoa mass. Cocoa butter is then separated from the cocoa mass through pressing.The remaining solid material is cocoa cake.
Because cocoa cake can form large and relatively hard pieces after pressing, it is suitable to use a coarse crusher before superfine grinding.

Main Application

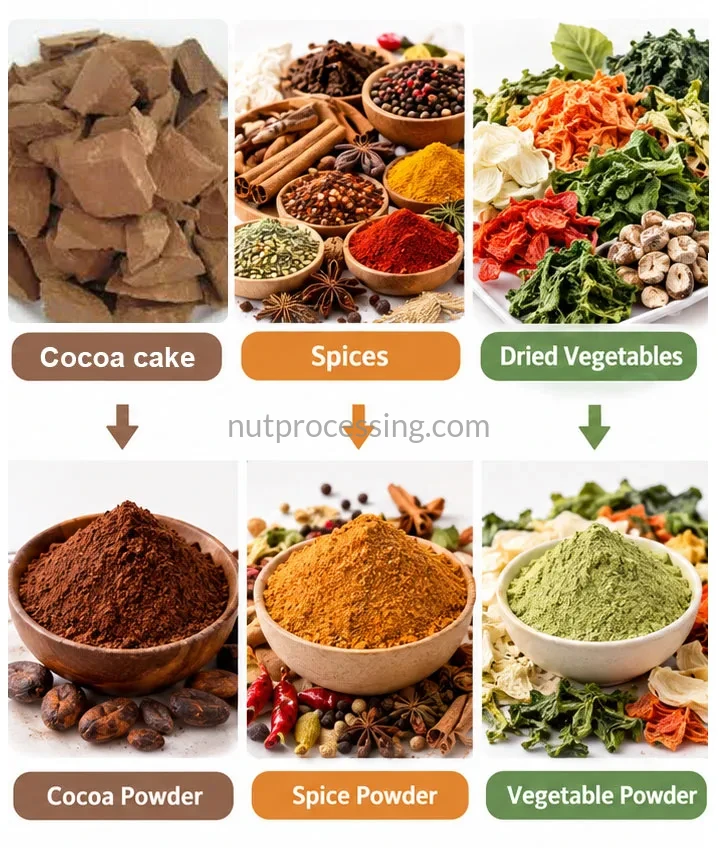

Coarse Crusher are widely used for size reduction in industries such as pharmaceuticals, chemicals, and food processing, serving as pre-treatment equipment prior to fine grinding. They are suitable for processing materials like cocoa, sugar, salt, soybeans, rice, various spices, and dried vegetables to produce powders such as spice powder, vegetable powder, powdered sugar, ginger powder, and garlic powder.

Working Principle

The machine has horizontal crushing structure and the machine ls made of stainless steel. The rawmaterialenters the crushing chamberfrom the hopper and then crushed by the rotating knives and lixed knives, and finally goes out from the outlet hopper automatically bythe centrifugal force. The crushing fineness can be adjusted by changing the screen.This machine can also be equipped with a dustremoval box according to the customer’s requirements which can reduce material loss and avold the dust fiying. meets the GMP requirements.

Technical Parameters of Cocoa Cake Coarse Crusher

Model	Production capacity (kg/h)	Spindle speed(r/min)	Feeding size (mm)	Fineness of products (mesh)	Motor power (kw)	Weight (kg)	Overall dimension (mm)
TZ100	15-100	600	≤50	0.5-20	2.2	170	500x700x1350
TZ200	30-300	600	≤50	0.5-20	3	220	650x700x1350
TZ300	50-500	600	≤100	0.5-20	4	300	750x700x1350
TZ400	100-800	600	≤150	0.5-20	5.5	380	850x700x1350
TZ500	150-1000	600	≤200	0.5-20	7.5	490	950x700x1350
TZ600	200-1500	600	≤250	0.5-20	11	660	1050x700x1350
TZ800	300-2000	600	≤250	0.5-20	15	850	1050X1150X1450
TZ1000	400-3000	600	≤250	0.5-20	22	1050	1500X1250X1650

video of Cocoa Cake Coarse Crusher

Why Use a Coarse Crusher Before Fine Grinding?

Using a coarse crusher before a fine grinding machine can provide several benefits.

First, it reduces large pieces into smaller particles before they enter the fine grinding stage. This can make the subsequent grinding process more suitable for the material.

Second, a multi-stage crushing and grinding process allows different machines to perform their specific functions.

For cocoa powder production, for example:

Cocoa Cake → Coarse Crushing → Superfine Grinding → Cocoa Powder

The coarse crusher handles the initial size reduction, while the superfine pulverizer focuses on producing the desired fine powder.

Main Features of the Coarse Crusher

1. Wide Application

The Coarse Crusher can be used for various suitable food, agricultural and dry raw materials, including cocoa cake, sugar, salt, soybeans, rice and spices.

2. Efficient Preliminary Crushing

The machine is designed to quickly reduce larger pieces into smaller particles, preparing materials for subsequent processing.

3. Stable Crushing Performance

A suitable crushing structure helps maintain stable performance during continuous production.

4. Easy Integration

The coarse crusher can be installed before other processing machines, such as superfine pulverizers, grinders and powder processing equipment.

5. Flexible Production Line Configuration

Different machines can be combined according to the material, production capacity and final product requirements.

6. Suitable for Continuous Processing

The machine can be incorporated into continuous production systems where raw materials need to be crushed before further processing.

Conclusion

The Coarse Crusher is an important preliminary crushing machine for many food and agricultural processing applications. It can be used to reduce suitable materials such as cocoa cake, sugar, salt, soybeans, rice and spices into smaller particles before further processing.

For cocoa powder production, the Cocoa Cake Coarse Crusher can be combined with a superfine pulverizer to create an efficient multi-stage crushing and grinding process.

If you are looking for a Coarse Crusher Machine for cocoa, food, spices, sugar or other suitable materials, we can provide machine specifications and a customized processing solution according to your production requirements.
