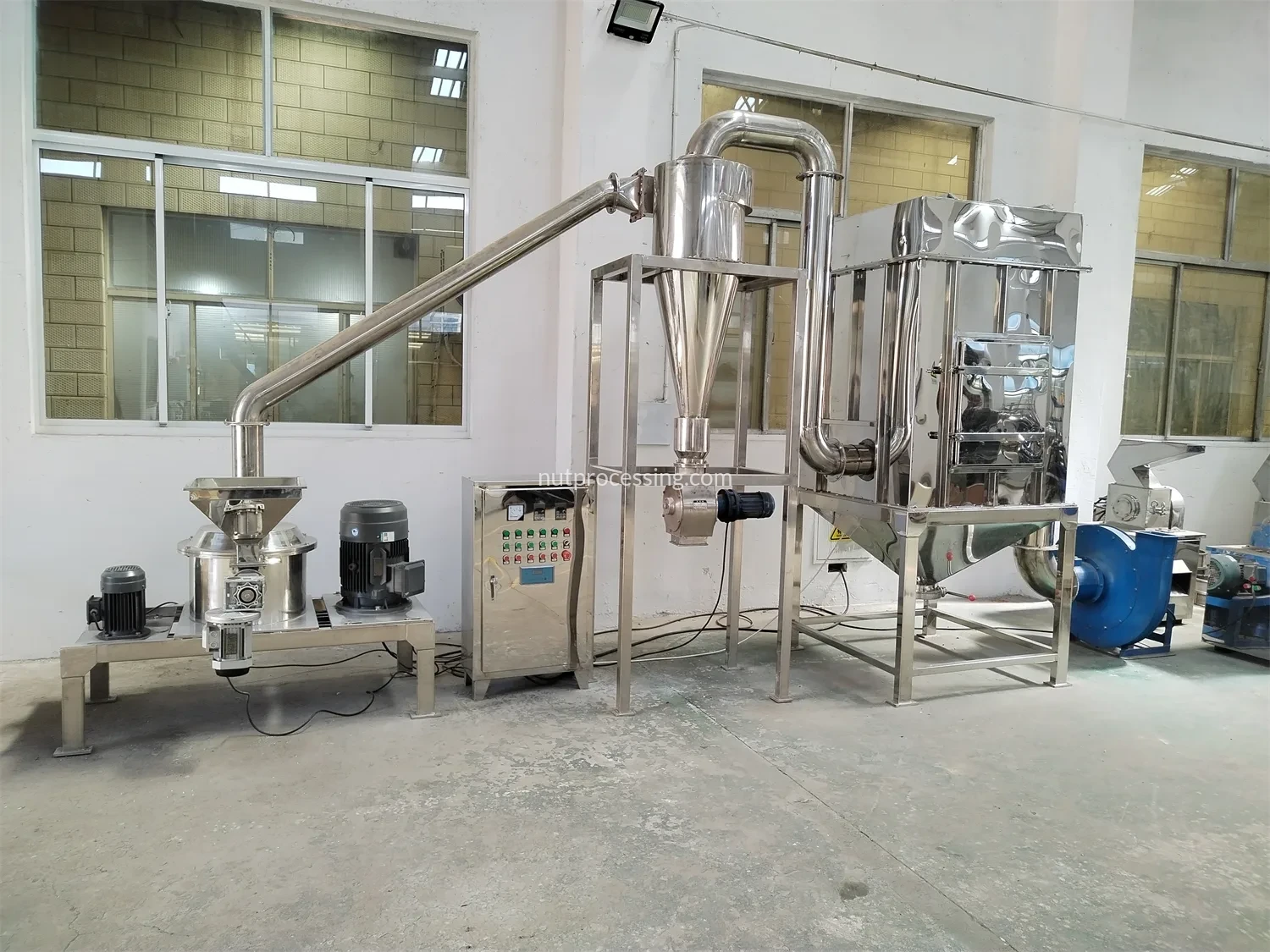

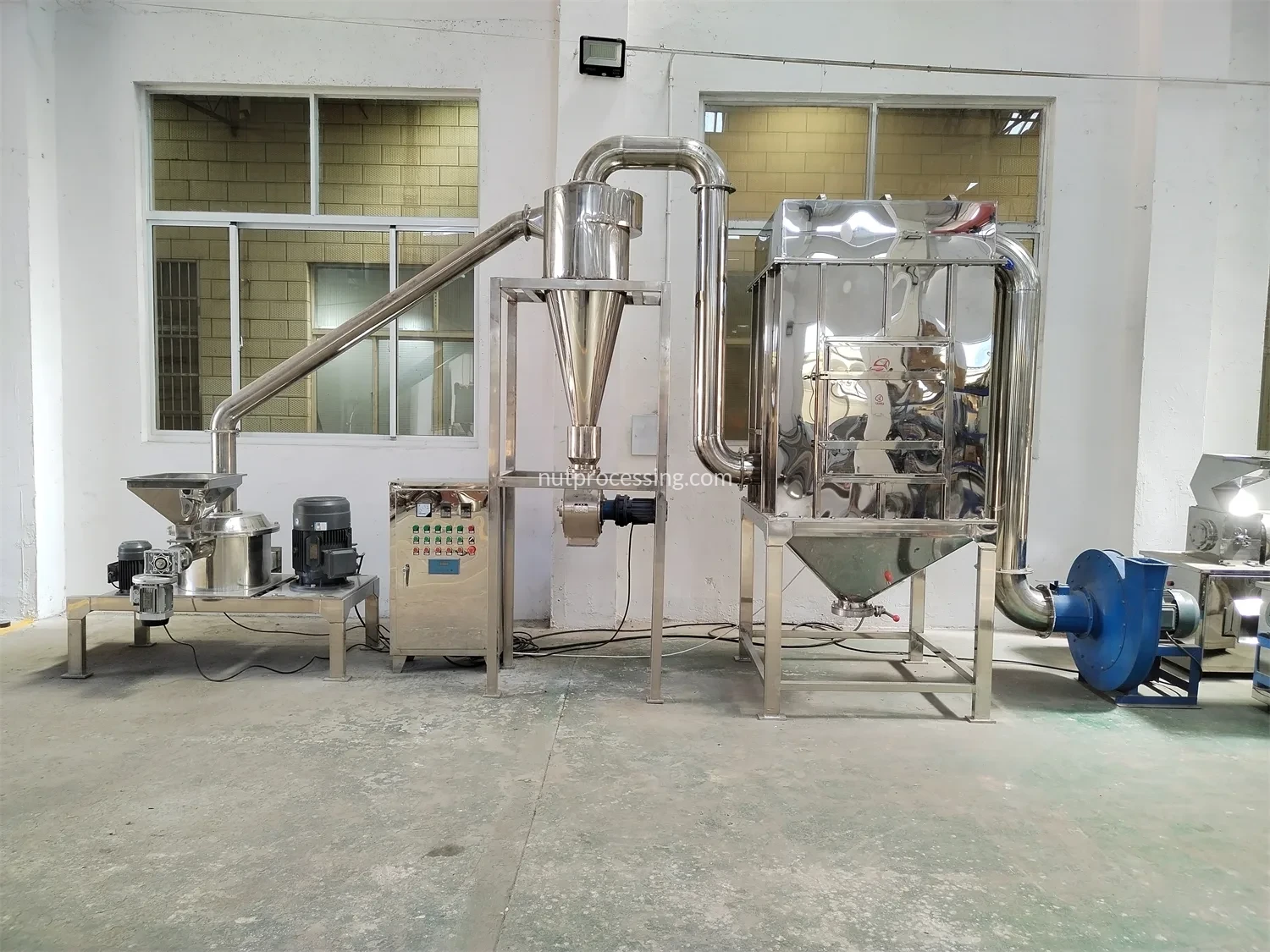

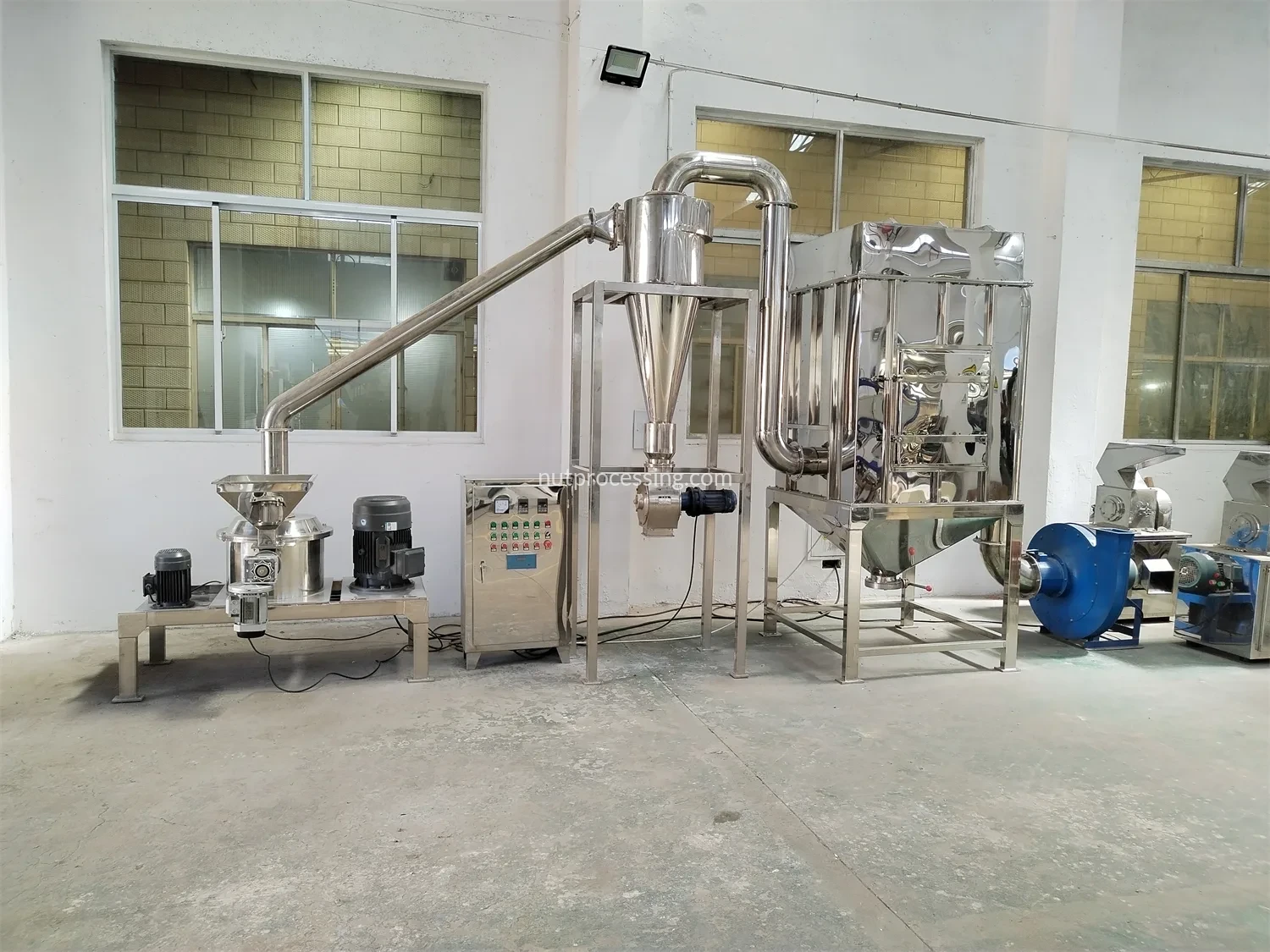

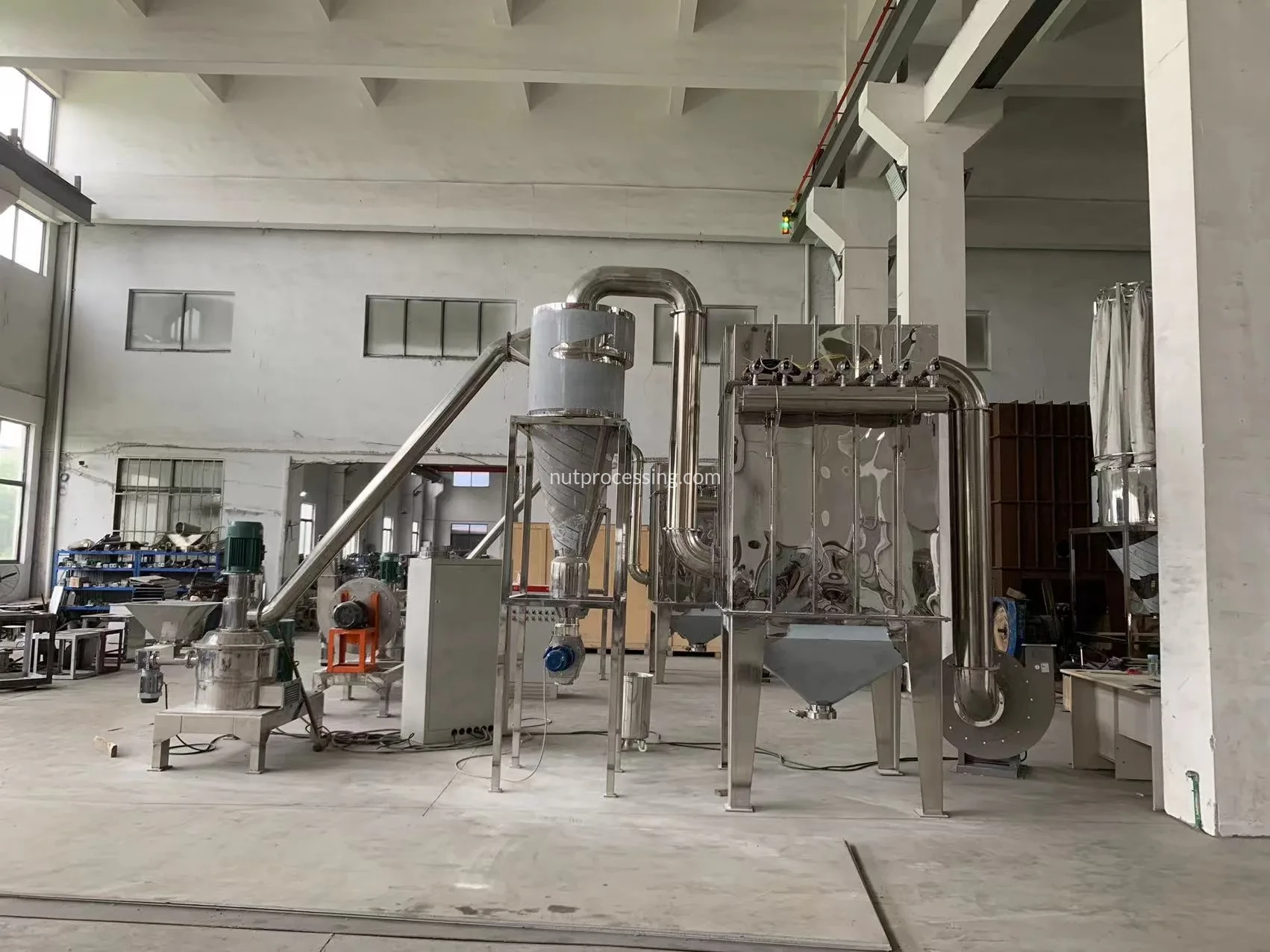

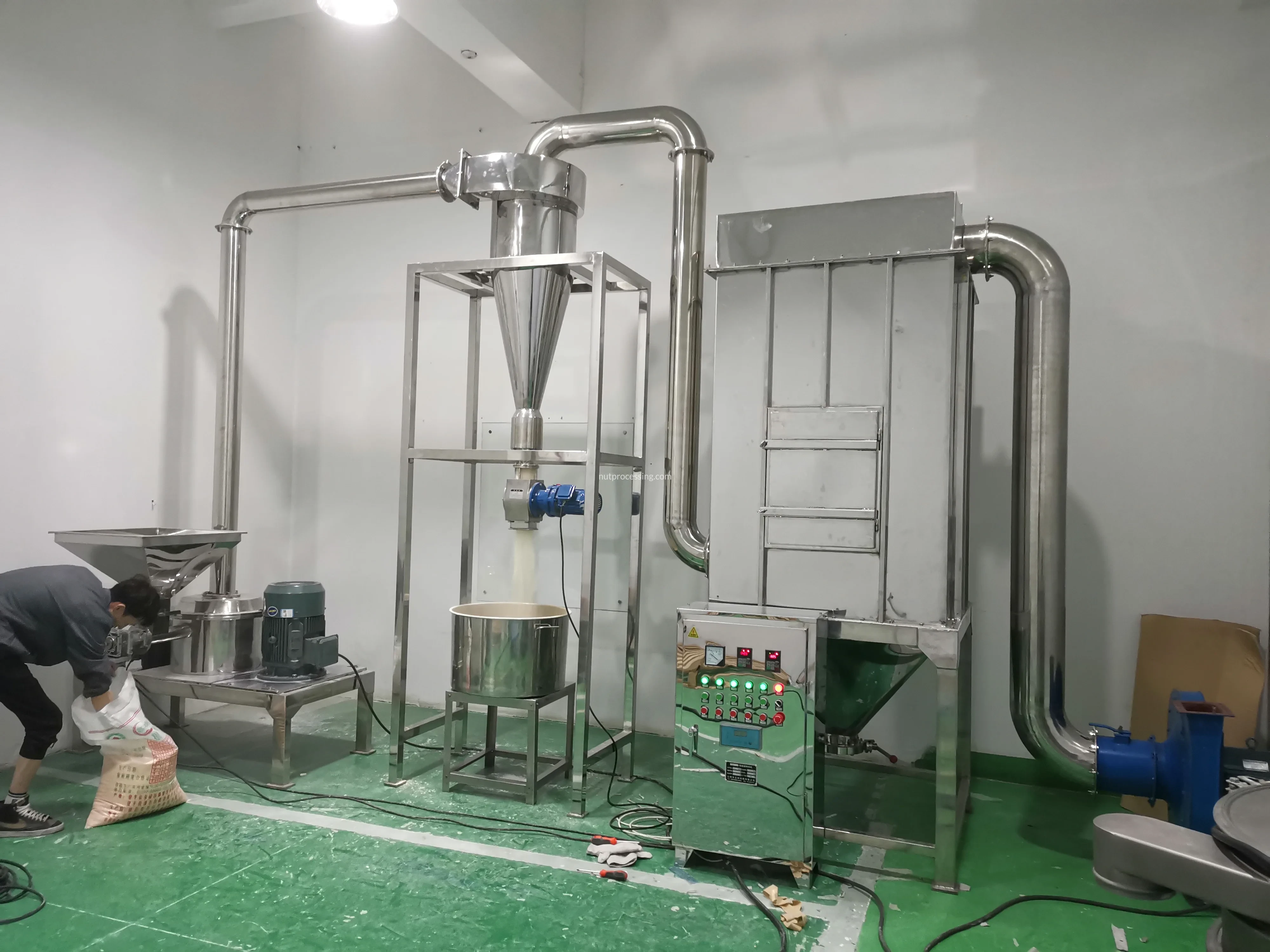

Cocoa Cake Superfine Pulverizer Machine consists o main motor,buxlary motor and electric cabinet, and it has the teatures of air separation ,no sleve or mesh, equality of ranule size, and continuous processing .etc. Currenlly, the machine has reached the intemational advanced level.The machine is widely used for material crushing in the industries of chemical , pharmaceutics and foodstuff, etc.
Working Principle

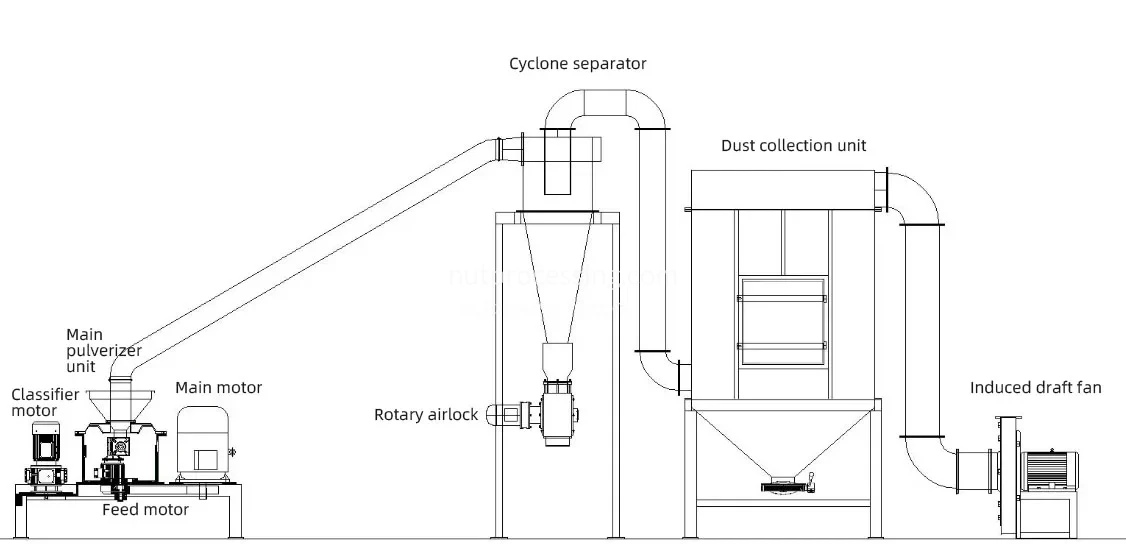

The raw material is sent to grinding chamber thrcugh hopper by screw conveyer and then puverized by high speed rotary tlades. powders go overthe guiding ring and go into the grading room.because the grading wheel is rotating. the powder towing into the bade path is inluenced by the airlorce and the cantrilugal force simutaneously.Powder bigger than the criical diameter particies is thrown back into the crushing chamber to crushbecause of the high qualty. the particles less than the critical diameter go into the cyclone separator by negative pressure
Technical Parameters
| Model | Production capacity (kg/h) | Spindle speed (r/min) | Feeding size (mm) | Fineness of products (mesh) | Total power(kw) | Weigh(kg) | Overall dimension (mm) |
| TZ-8 | 20-120 | 6800 | <8 | 80-450 | 11 | 1000 | 6000x1050x2650 |
| TZ-15 | 50-200 | 6000 | <10 | 80-450 | 18.5 | 1300 | 7000x1200x2900 |
| TZ-20 | 80-300 | 4800 | <10 | 80-450 | 25 | 1700 | 8000x 1350x 3300 |
| TZ-30 | 100-800 | 3800 | <15 | 80-450 | 46 | 2300 | 9200x 1500x 3800 |
| TZ-60 | 200-1200 | 2800 | <18 | 80-450 | 84.15 | 3200 | 10500x2300x4530 |
| TZ-80 | 500-1500 | 2400 | <20 | 80-450 | 100.4 | 3800 | 12000x 2500x 4800 |
Video of Cocoa Cake Superfine Pulverizer Machine
Why Use a Superfine Pulverizer for Cocoa Cake?
Cocoa cake needs to be processed into a fine powder before it can be used in many food applications. A dedicated Cocoa Cake Superfine Pulverizer Machine provides a more efficient solution than relying only on conventional crushing equipment.
The main advantages include:
- Efficient cocoa cake size reduction
- Fine powder production
- Consistent grinding performance
- Continuous processing capability
- Easy integration into a cocoa powder production line
- Suitable for commercial cocoa processing
The appropriate machine model should be selected according to the required capacity, raw material characteristics and final powder fineness.
Conclusion
The Cocoa Cake Superfine Pulverizer Machine plays an important role in cocoa powder production. By finely grinding cocoa cake after cocoa butter pressing, the machine helps transform cocoa solids into fine and uniform cocoa powder.
For cocoa processing factories, chocolate manufacturers and food processing businesses, choosing the right cocoa cake grinding machine can improve the efficiency and consistency of the powder production process.
If you are looking for a Cocoa Cake Superfine Pulverizer Machine, we can provide suitable equipment and a complete cocoa powder processing solution according to your production requirements.
Contact us for machine specifications, capacity, price and a customized cocoa powder production line.
