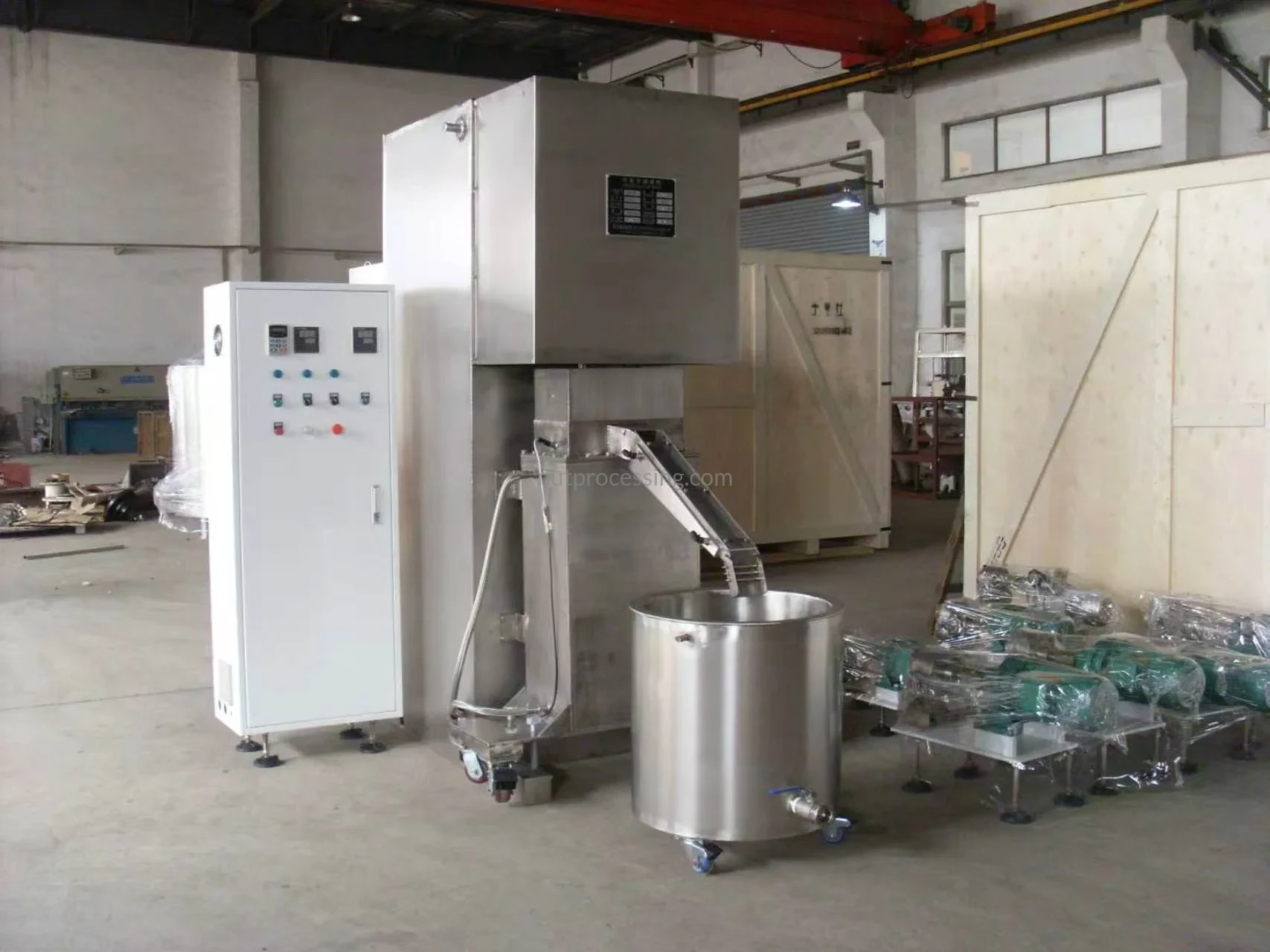

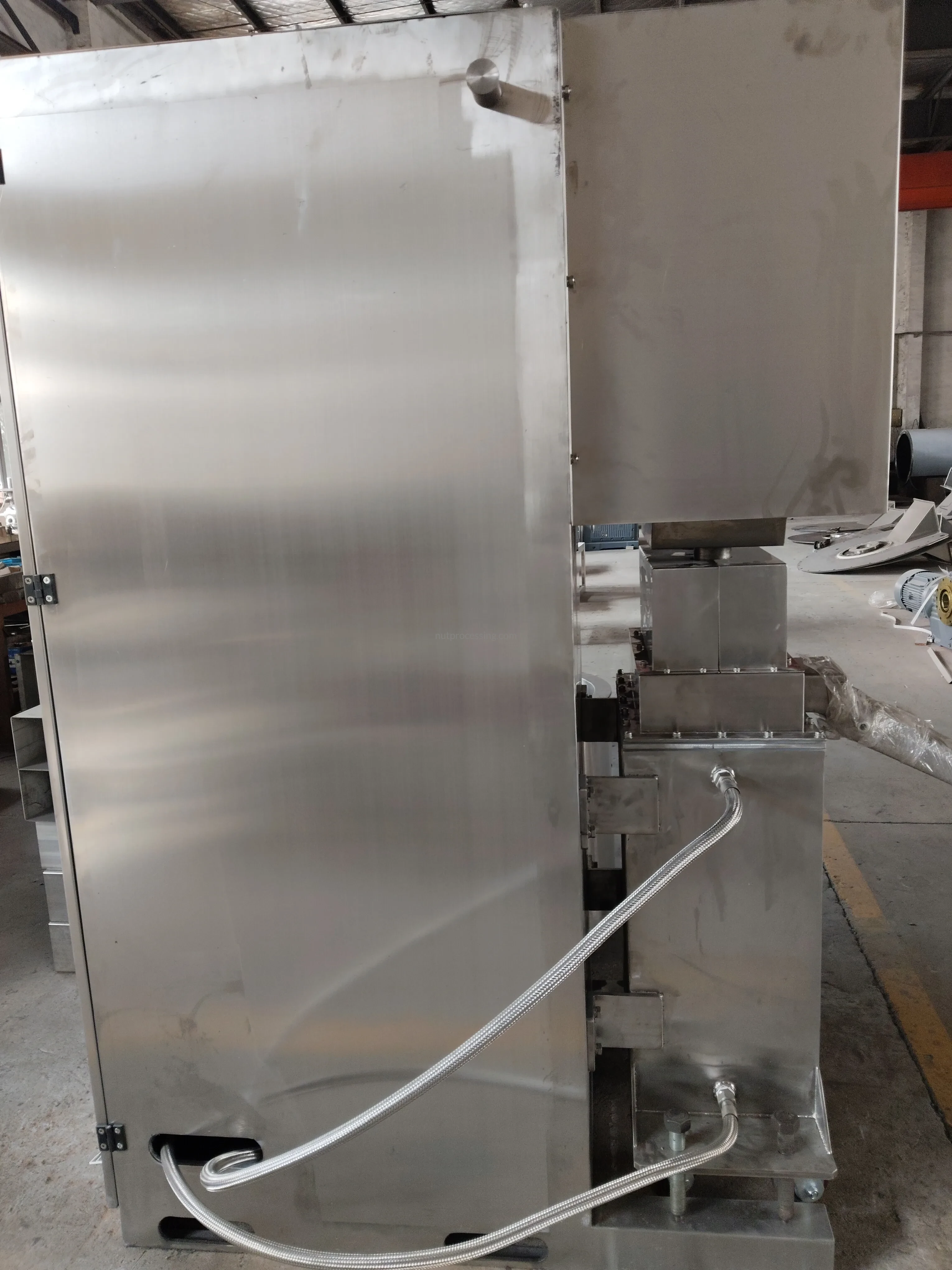

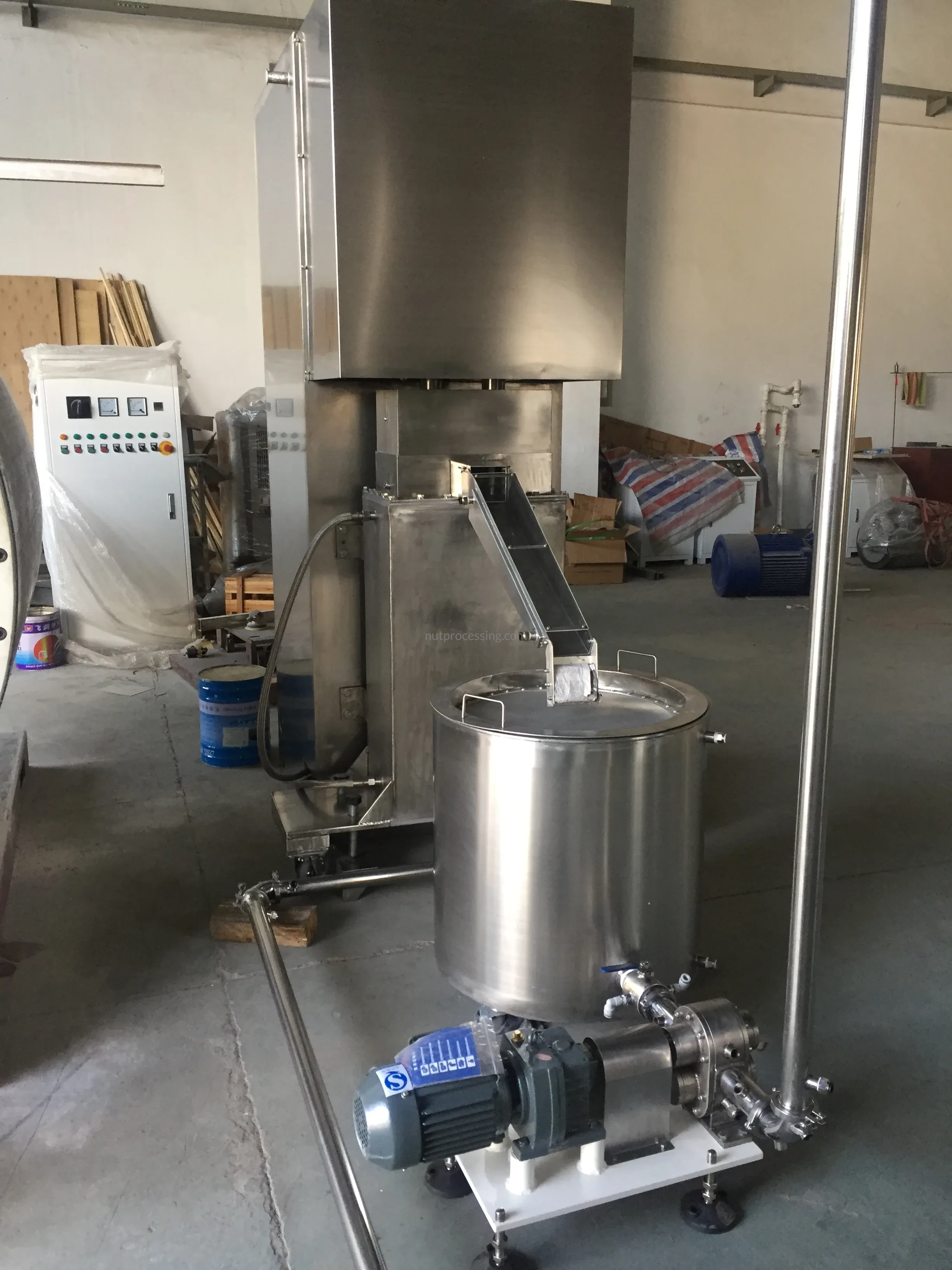

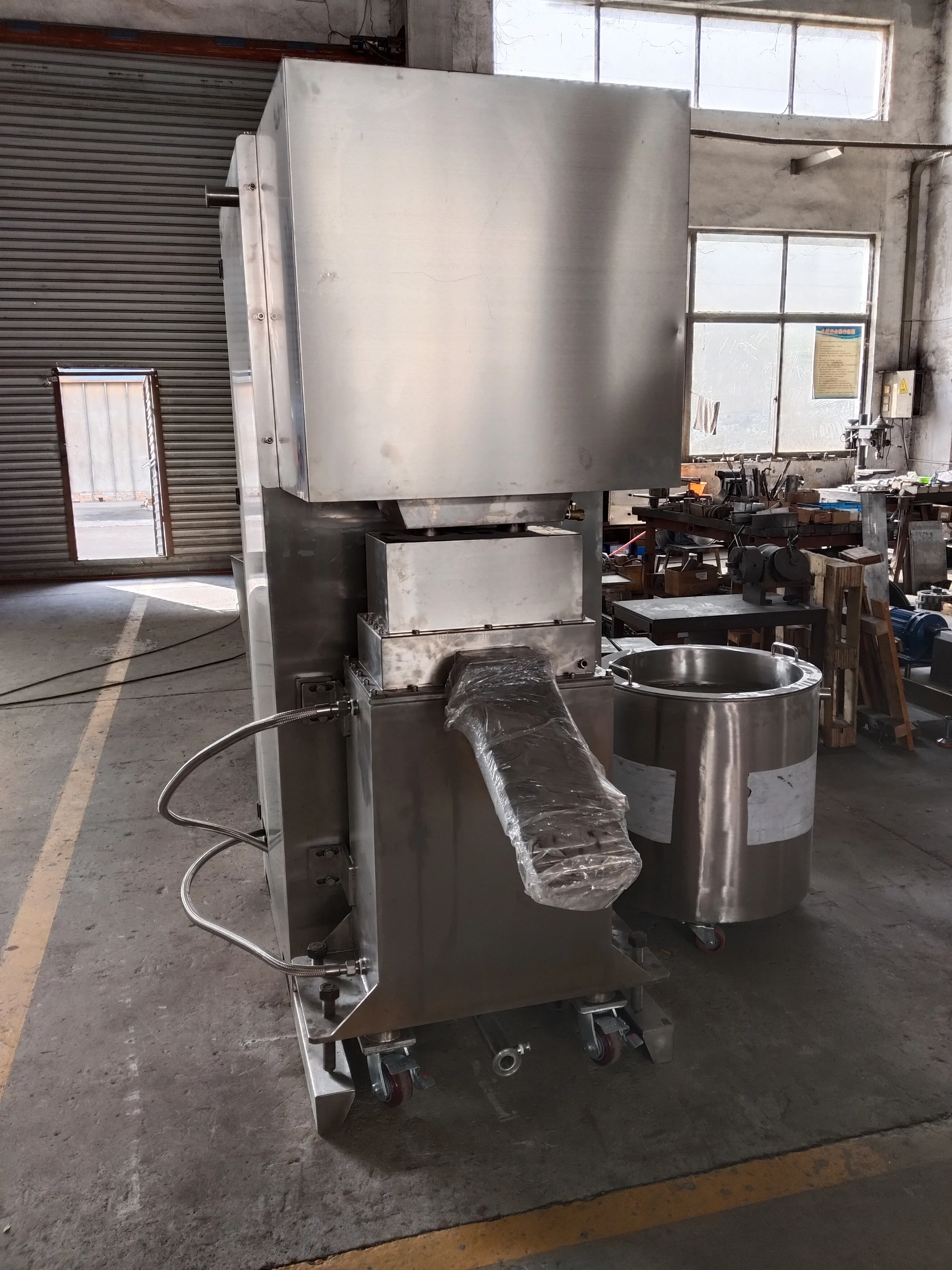

TZ250 Chocolate Ball Milling Machine is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel balls and the chocolate pastes inside the cylinder, the chocolate pastes will be continuously milled to reach the required fineness, featuring high production output, low energy cost, even fineness and etc.. This machine should be used along with chocolate refiner and conche, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. Automatic temperature control is equipped.

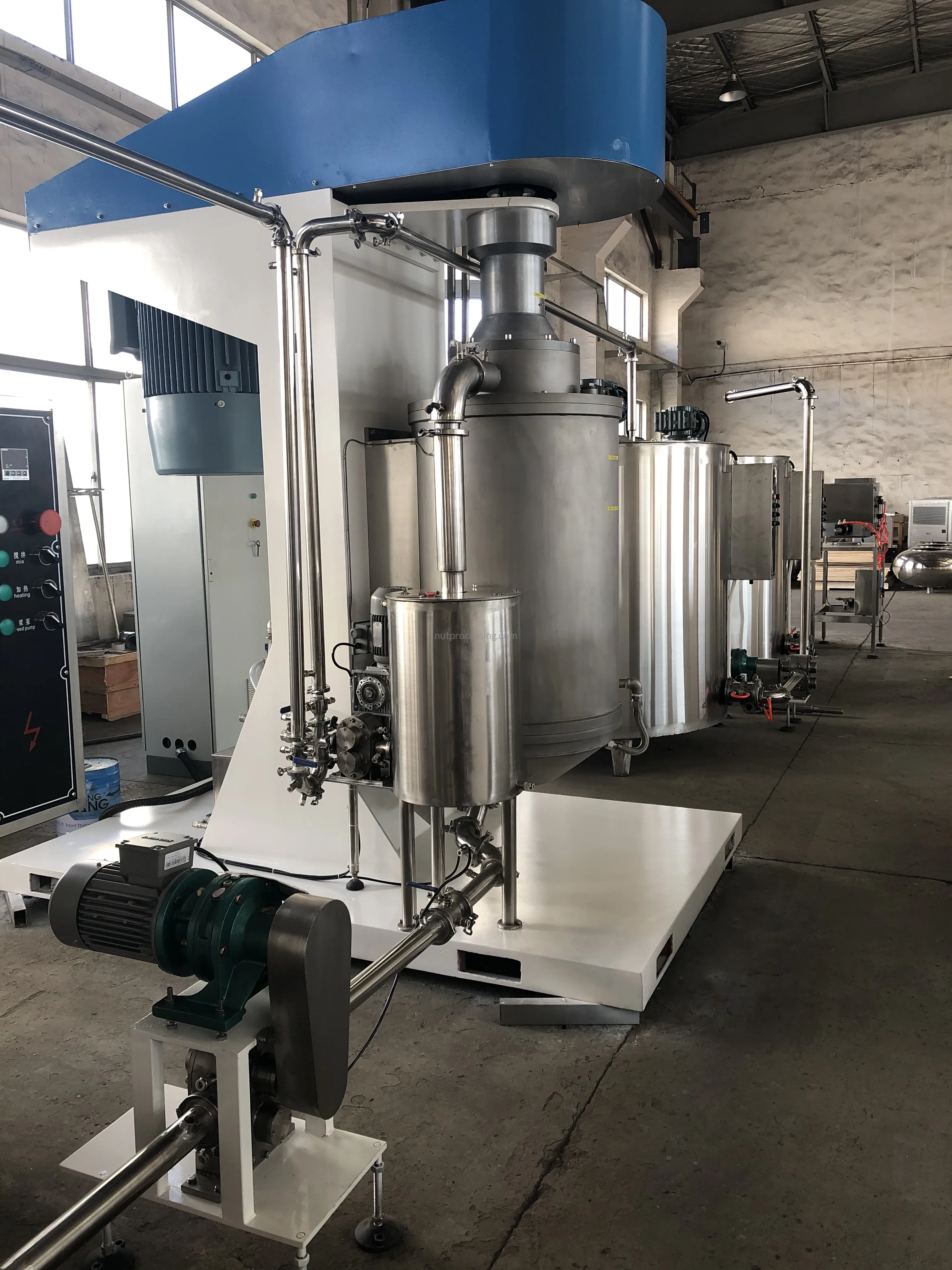

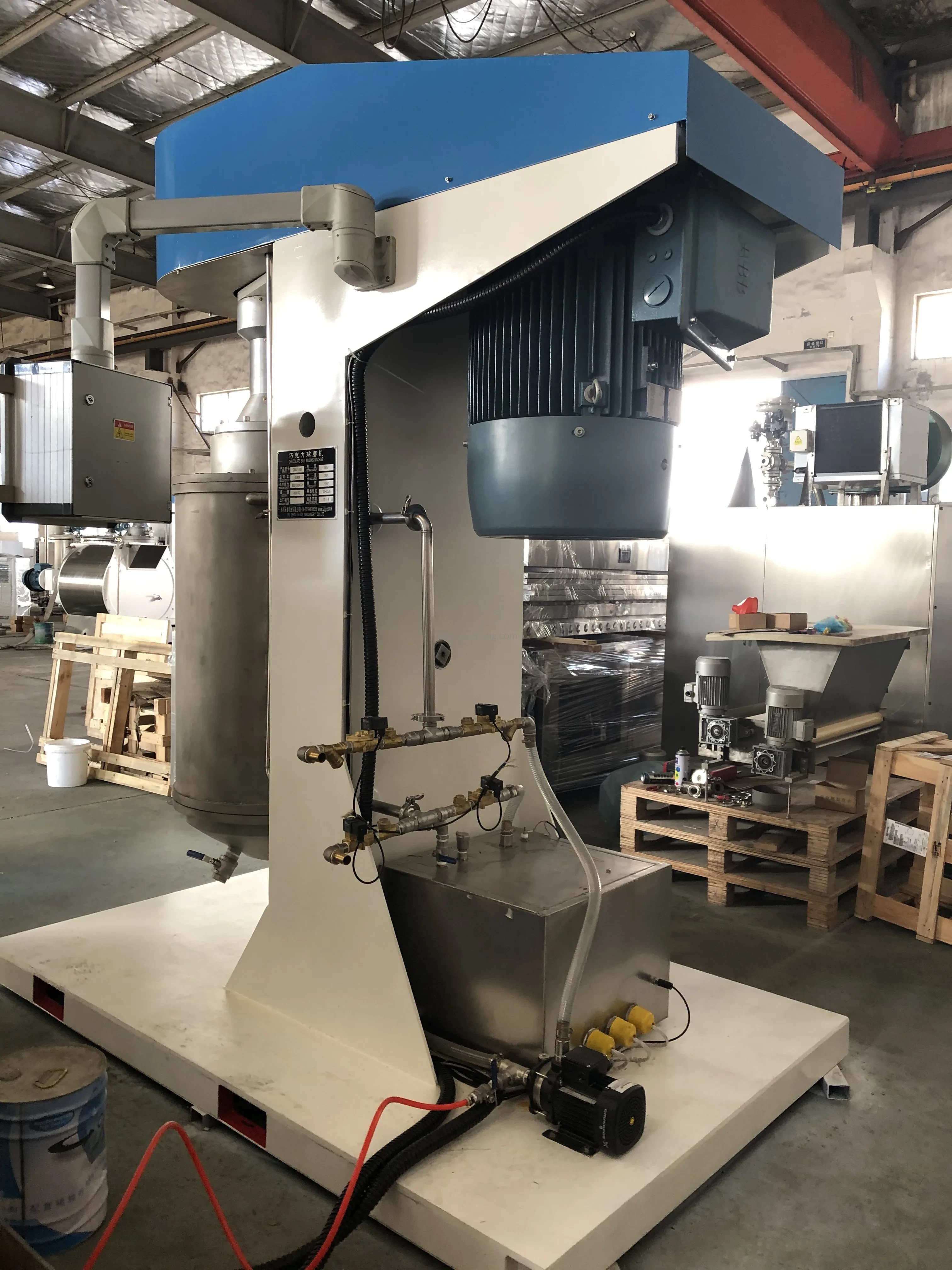

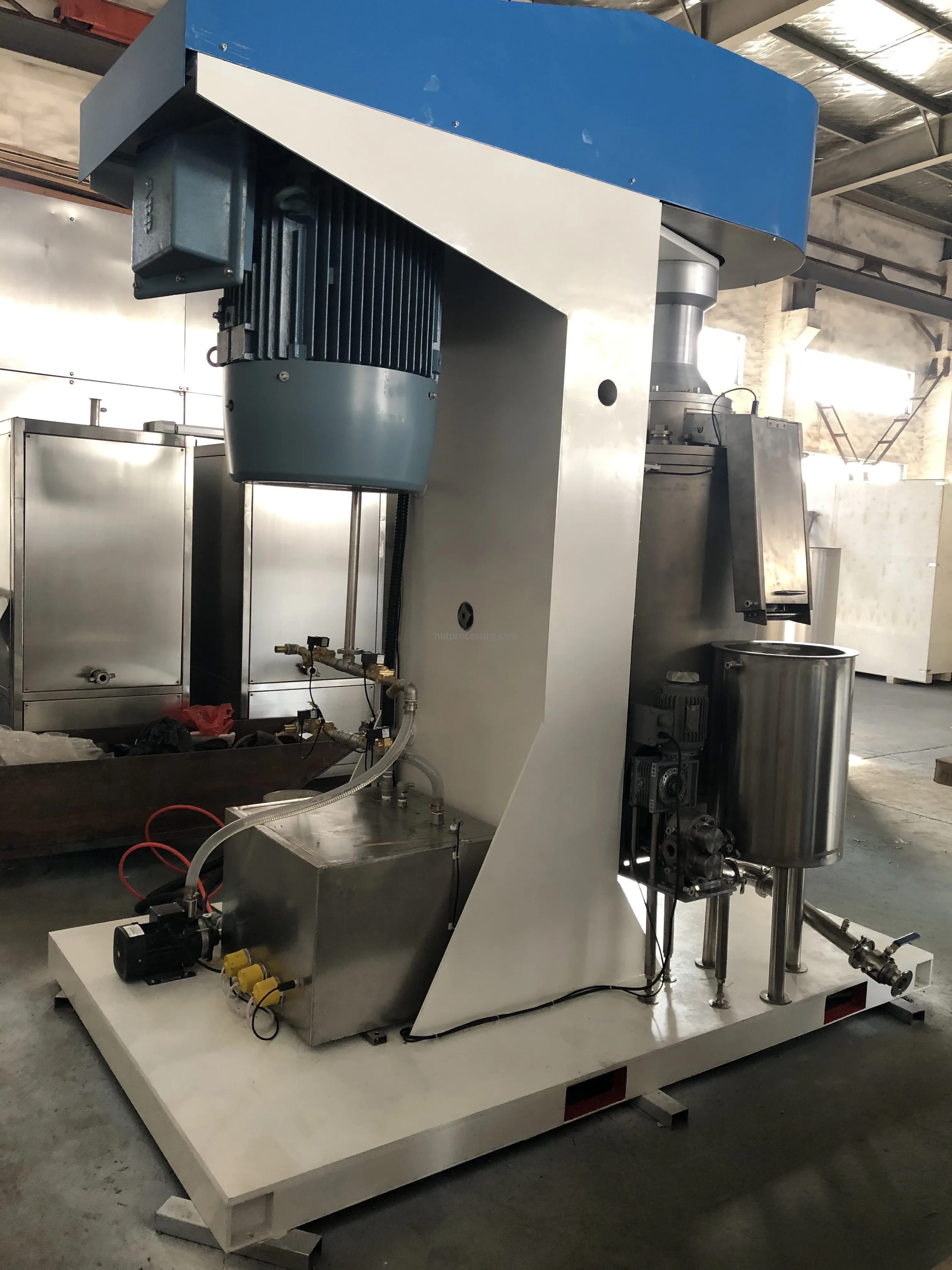

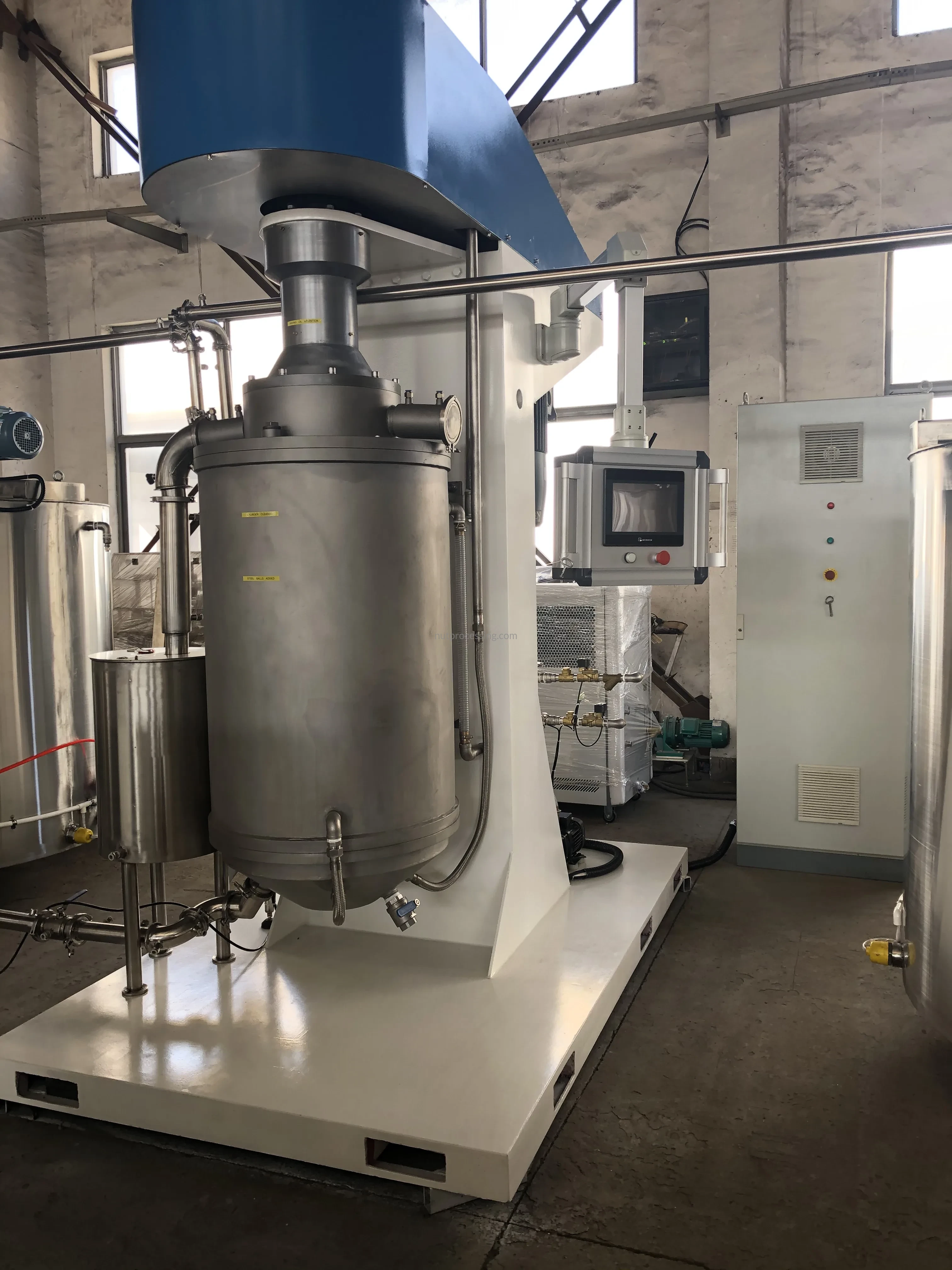

TZ1000 Chocolate Ball Milling Machine isused for ball grinding and milling chocolate pastes.Through collision and friction between the steel balls and the chocolate pastes inside the cylinder, the chocolate pastes will be continuously milled to reach the required fineness, featuring high production output,low energy cost,even fineness and etc..This machine should be used along with chocolate mixer, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. Automatic temperature control and PLC control system are equipped.

Working Video of the Ball Mill Machine

Chocolate Ball Mill Machine Parameters

Model	Motor power	Capacity	Fineness	Ball Material	Balls weight	Machine weight	Size
TZ-250	15kw	200-250kg/h	25-20um	Ball bearing steel	180kg	2000kg	1100*1250*2150mm
TZ-1000	55kw	750-1000kg/h	25-20um	Ball bearing steel	1400kg	5000kg	2400*1500*2600mm

Main Features of a Chocolate Ball Mill Machine

1. Fine Grinding Performance

The chocolate ball mill is designed to reduce particle size through repeated grinding action. This helps manufacturers achieve the required chocolate texture for different products.

2. Uniform Chocolate Texture

Proper grinding conditions help improve the consistency of the chocolate mixture, making the machine suitable for commercial chocolate production.

3. Efficient Processing

The ball milling process combines grinding and refining in one machine, helping simplify the production process.

4. Adjustable Processing Parameters

Grinding time and other operating parameters can be selected according to the material formulation and desired fineness. The achievable particle size depends on the machine model and processing conditions.

5. Compact Production Configuration

A chocolate ball mill can be incorporated into different factory layouts and production systems, depending on its capacity and supporting equipment.

6. Integration with Chocolate Production Lines

The machine can be connected with chocolate mixers, storage tanks, temperature control equipment, and other downstream machinery to form a complete chocolate processing system.

Chocolate Ball Mill in a Complete Chocolate Production Line

A chocolate ball mill can serve as the grinding and refining section of a complete chocolate processing line.

A typical production configuration may include:

1. Ingredient Preparation: Cocoa-based ingredients, sugar, milk powder, and other formulation ingredients are prepared.
2. Mixing: Ingredients are blended according to the chocolate recipe.
3. Ball Milling: The chocolate mixture is ground and refined to the required particle size.
4. Storage: The refined chocolate mass is transferred to a suitable storage tank.
5. Further Processing: Depending on the product, the chocolate may undergo additional processing, such as tempering, molding, cooling, or filling.

The complete production process varies according to the final product. For example, chocolate bars, chocolate coatings, and chocolate fillings may require different downstream equipment.

How to Choose the Right Chocolate Ball Mill?

Selecting the right chocolate ball mill machine requires careful consideration of several factors.

Production Capacity

Determine the required output according to your factory’s production targets. The machine capacity should match the requirements of the complete production line.

Required Particle Size

Different chocolate products may require different particle sizes. Confirm the target fineness with the equipment supplier before purchasing.

Chocolate Formulation

The ingredients, viscosity, fat content, and initial particle size of the chocolate mixture can affect grinding performance.

Grinding Time

The required grinding time depends on the raw materials, formulation, target particle size, and equipment design. Actual processing conditions should be verified through testing.

Machine Material and Hygiene

For food production, the product-contact materials and construction should meet the applicable food-processing and hygiene requirements.

Production Line Compatibility

Consider the available factory space, feeding method, discharge arrangement, temperature control, and connections with upstream and downstream equipment.

A suitable machine configuration can improve the coordination of the entire chocolate production process.

Frequently Asked Questions About Chocolate Ball Mills

1. What Is a Chocolate Ball Mill Used For?

A chocolate ball mill is used to grind and refine chocolate mixtures by reducing the size of solid particles. It helps produce a finer and more uniform chocolate mass.

2. Can a Chocolate Ball Mill Produce Smooth Chocolate?

Yes. A properly configured ball mill can reduce particle size and improve chocolate texture. The final smoothness depends on the machine model, formulation, processing time, and target particle size.

3. What Materials Can Be Processed?

Chocolate ball mills are primarily designed for suitable chocolate mixtures and chocolate-based ingredients. The material must be compatible with the machine’s design and operating conditions.

4. Can a Chocolate Ball Mill Be Used in a Complete Production Line?

Yes. It can be integrated with mixing, storage, temperature control, and other chocolate processing equipment to create a complete production system.

5. How Do I Choose a Chocolate Ball Mill Capacity?

Choose a model based on your required hourly or batch output, chocolate formulation, target fineness, and production schedule. Consult the supplier to confirm the actual capacity under your operating conditions.

Conclusion

The Chocolate Ball Mill is an essential grinding and refining solution for many chocolate manufacturing applications. By reducing the particle size of chocolate mixtures, it helps manufacturers achieve a finer and more consistent chocolate texture.

For chocolate factories, confectionery manufacturers, and food processing businesses, selecting the right Chocolate Ball Mill Machine can improve processing efficiency and support stable product quality.
